Apps Android Fragment transparency problem

[PaulR75]

Hi,

Is there a simple way or hack to solve the transparency issu in Fragments.

I have tried many propositions on other forums but non actually work, like coloring the background ...

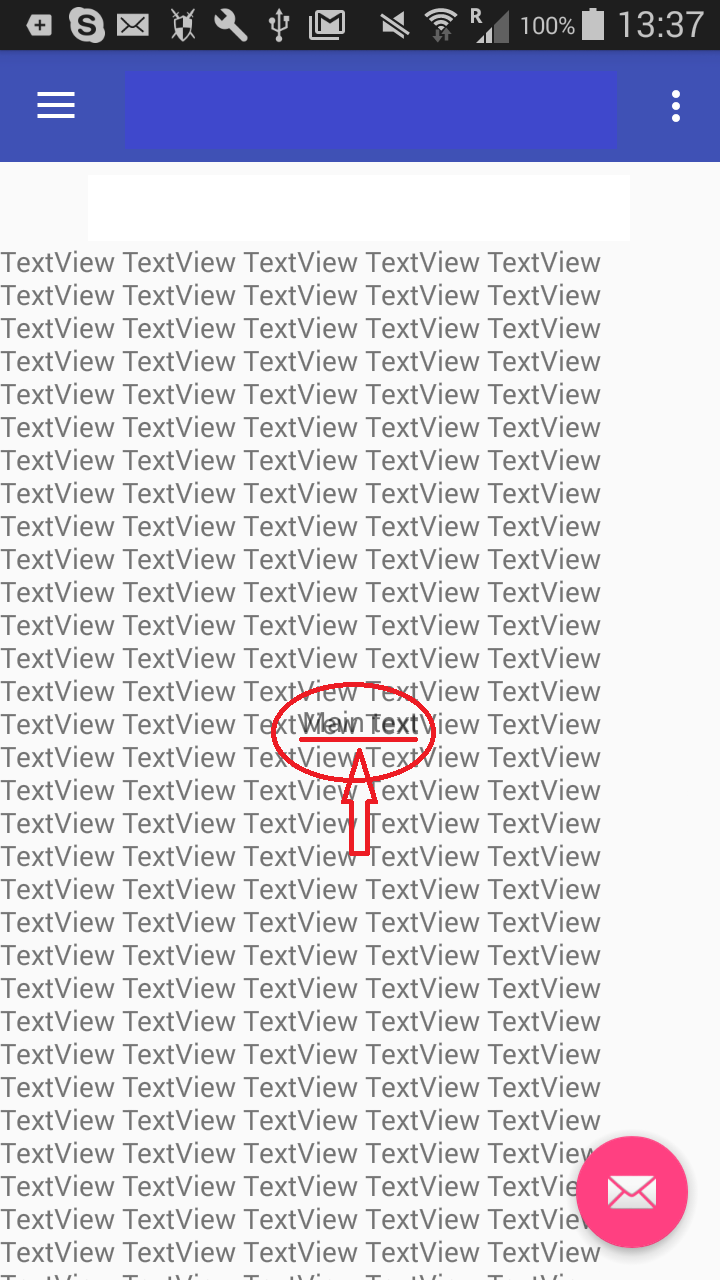

see attached pic for visual of the issu.

tks



[Deleted User]

What are you trying to do?
It would help to see your code, and layout XML



[PaulR75]

Hello,

Thank you for your reply.

I am using the Drawers template where the menu slides from left side. Now whatever is on the main screen is still visible from the transparency (!) of the Fragment. Searching for this i see i am not the only one with this problem and none of the responses i came to find are working or seem to me like they are to far fetched to be implementable without triggering a domino effect in my code.

I find it funny in the 1st place that the Fragment backgrounds should come transparent by default ! I see a bunch of apps using the drawers that dont have this problem so, i'm sure there's got to be a simple way to avoid this transparency, would it be a simple hack.

in content_main.xml

<FrameLayout
    android:id="@+id/content_frame"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:layout_editor_absoluteY="8dp"
    tools:layout_editor_absoluteX="8dp">
</FrameLayout>

in MainActivity.java

   @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        // Handle action bar item clicks here. The action bar will
        // automatically handle clicks on the Home/Up button, so long
        // as you specify a parent activity in AndroidManifest.xml.
        int id = item.getItemId();

        //noinspection SimplifiableIfStatement
        if (id == R.id.action_settings) {
            return true;
        }

        return super.onOptionsItemSelected(item);
    }

    @SuppressWarnings("StatementWithEmptyBody")
    @Override
    public boolean onNavigationItemSelected(MenuItem item) {
        // Handle navigation view item clicks here.
        int id = item.getItemId();
        android.app.FragmentManager fragmentManager = getFragmentManager();

        if (id == R.id.nav_first_layout) {
            fragmentManager.beginTransaction()
                    .replace(R.id.content_frame
                            , new FirstFragment())
                    .commit();

        } else if (id == R.id.nav_second_layout) {
            fragmentManager.beginTransaction()
                    .replace(R.id.content_frame
                            , new SecondFragment())
                    .commit();

        } else if (id == R.id.nav_third_layout) {
            fragmentManager.beginTransaction()
                    .replace(R.id.content_frame
                            , new ThirdFragment())
                    .commit();

        } else if (id == R.id.nav_fourth_layout) {
            fragmentManager.beginTransaction()
                    .replace(R.id.content_frame
                            , new FourthFragment())
                    .commit();

        } else if (id == R.id.nav_fifth_layout) {
            fragmentManager.beginTransaction()
                    .replace(R.id.content_frame
                            , new FifthFragment())
                    .commit();

        } else if (id == R.id.nav_sixth_layout) {
            fragmentManager.beginTransaction()
                    .replace(R.id.content_frame
                            , new SixthFragment())
                    .commit();

        } else if (id == R.id.nav_seventh_layout) {
            fragmentManager.beginTransaction()
                    .replace(R.id.content_frame
                            , new SeventhFragment())
                    .commit();

        } else if (id == R.id.nav_share) {

        } else if (id == R.id.nav_send) {

        }

        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
        drawer.setScrimColor(Color.BLACK);
        drawer.closeDrawer(GravityCompat.START);
        return true;
    }
}

and the layouts that are triggered open

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"

    android:clickable="true"
    android:focusable="true"
    android:background="@android:color/black">


    <TextView
        android:id="@+id/textView2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:text="@string/first_layout_page"
        android:textAlignment="center"
        android:textSize="20sp"
        android:layout_alignParentRight="true"
        android:layout_alignParentEnd="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentStart="true" />

    <WebView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_centerHorizontal="true"
        android:layout_below="@+id/textView2"
        android:background="@android:color/black"

        />

</RelativeLayout>

the background "color" black have absolutely no effect on results. At this point keeping them in the code just to remember i tried them out.
