Mrs Albright
Lurker
I have a Nokia WT240 battery & I need to know the values of the terminals on the head. I know one is plus & one is minus & there are 2 more. I need to know which is which.
-
After 15+ years, we've made a big change: Android Forums is now Early Bird Club. Learn more here.
Nokia WT240 Battery
- Thread starter Mrs Albright
- Start date
I don't know your particular battery, but the other terminals are more than likely for the thermocouple temperature sensor. As monitoring the temp is essential for charging LiPo batteries safely.
Mrs Albright
Lurker

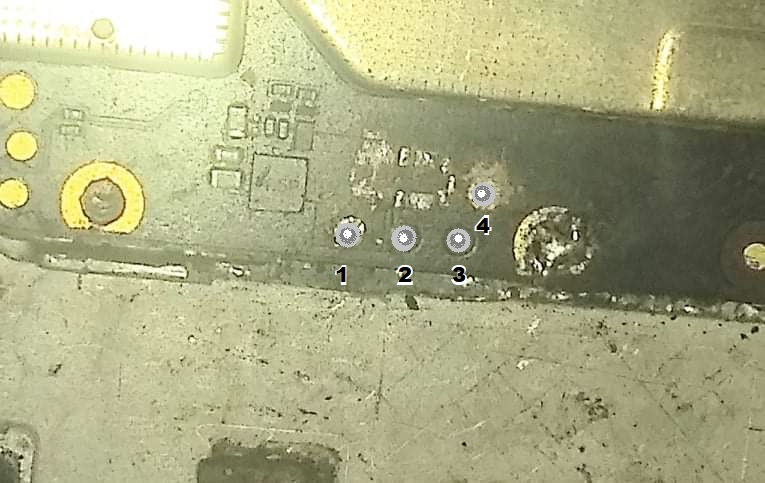

Thank you. I was wrong about what I need. I need to know what the test points are from the battery to the motherboard because something is wrong with the ribbon. This pic is of a Nokia 3V. I colored it & put the numbers so it's easier to see. I need to know which one each is from left to right. I know they're pos. neg. & then 2 for the thermol sensors but I need to know which is which.
