Help Samsung Galaxy Grand Prime SM-G530H STUCK on LOGO HELP HELP HELP

DeniseDennis

DeniseDennis

Newbie
I dropped my device last 2 months ago but nothing happens and now it just suddenly gets hang or frozen screen and just recently got stucked on Samsung Logo. I tried to install stock ROM using ODIN and it was always "FAIL" when in system.img. I tried wiping user data and cache and I also try updating trhu sd card but it also fail. I will try to check it using Kies today. What else can I do? Please help me anyone....
Below is my Device Details:
SAMSUNG GALAXY GRAND PRIME
SM-G530H/DS
Made in Vietnam
S/N: R51FB1KH5WR

Hopefully it will work for you.
When you tried Odin, what firmware did you use?
If you boot into recovery, the second line should show your current firmware and does it match what you tried to flash?

Jfalls63 said:
Hopefully it will work for you.
When you tried Odin, what firmware did you use?
If you boot into recovery, the second line should show your current firmware and does it match what you tried to flash?
Click to expand...

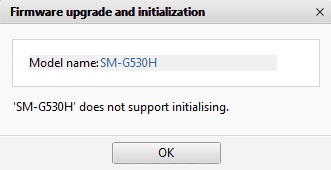

Kies does not support my device.
I will try to reflash using ODIN using the FW that is stated in the recovery boot.
KTU84P.G530HDXU2AOE2


Attachments

  • Kies.jpg
    14.2 KB · Views: 567

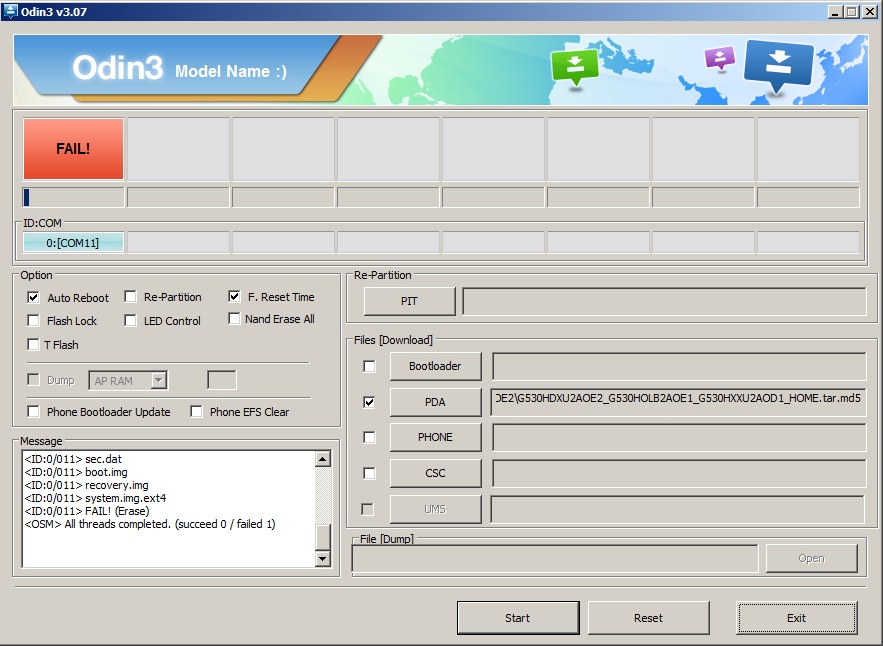

I try to reflash using ODIN using the FW that is stated in the recovery boot G530HDXU2AOE2.
But it failed again when in "system.img.ext4 (please see attached picture).

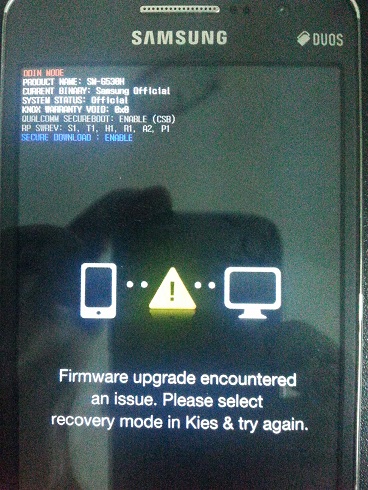

And when I reboot my device the it got stuck on the screen saying "Firmware upgrade encountered an issue" (please see attached picture).. Please help me out I don't know what else to do, huhu


Attachments

  • ODIN Fail.jpg
    ODIN Fail.jpg
    148.2 KB · Views: 999
  • Screen.jpg
    120 KB · Views: 1,991
dennis blasco said:
Ok I will try this. I will let you know after. thanks thanks
Click to expand...


Sorry I forgot to check it, it is the 1st FW I used on my 1st try to flash using ODIN. And the same results, it always FAILED when in system.img.ext4. Take note that I also tried other carrier's latest version(same results), I also tried the oldest version yesterday(same results).. thanks

Few other things that might help, can't hurt.
Uninstall Kies but keep drivers if on same pc with Odin. Sometimes they clash.
Could also try updated version of Odin, V 3.11 is most recent.

Jfalls63 said:
That sucks.
I found this site a few weeks ago. It's supposed to be the 4 part Samsung Service Files. I have downloaded one for a different device to look at but haven't used.
http://www.tsar3000.com/Joomla/inde...ader-csc-pit-files&catid=55:samsung&Itemid=82
The second one under your model number should be the one to try
Click to expand...


yeah it really sucks, I will try this fw, I hope this will resolve the issue. I will also try to uninstall Kies and I will use the updated ODIN. thanks for your prompt response.. ^_^

When you unzip the download, if it is broken up that way it will be in four parts and you would tick all the boxes and put each part in its proper place
If the standard all in one, just the usual AP/PDA.

Jfalls63 said:
When you unzip the download, if it is broken up that way it will be in four parts and you would tick all the boxes and put each part in its proper place
If the standard all in one, just the usual AP/PDA.
Click to expand...

Noted bro, up up up for this.. thanks I will try it now. (fingers crossed)
