Tap to change USB options

The USB icon has started to show up and won't go away. It says "Power Supply: Tap to change USB options" Tapping gives the list of options for how to use the USB. the option "Power supply: charge the connected device" is always selected, even if I change it to something else. It won't charge on my wireless pad while that USB icon is showing. I got it to go away the first time it started showing by plugging it into the charging cable. Once the battery was full the icon went away and it was okay with the wireless pad. But it's BAAACK and won't be persuaded to go away.

Any suggestions?

Is there any dirt or debris in the usb socket that might be making the phone think it is plugged in?

If you can see anything clean it carefully - an air blower or soft brush is better than a hard object, since you don't want to damage the contacts.

Sooo... the USB power thing is like engine lights and gas caps, it seems.

I used canned air to blow out the port several times. Works for 5-20 minutes, then it's baaaack. There is nothing physical in the port.

Other suggestions?

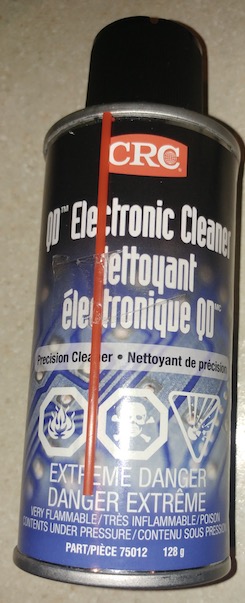

I have an LG-G5 phone and had the same annoying USB pop-up and icon problem after my phone was dropped (very briefly) in shallow (salt) water on a beach, even though I immediately turned it off and removed the battery as soon as possible. I went through extensive steps to make absolutely sure there was no chance of moisture inside or out of that phone and battery pack. I air dried it many times and did much more to remove any chance of moisture. The problem persisted. After searching the internet and seeing many people pointing the finger at the connector, I also cleaned the charging connector with spray air and toothpicks to remove any chance of debris. No joy. I finally realized that the salt water might have left a conductive film or some contaminant on the charging connector, or the blade connector inside the phone where the battery pack connects to the electronics inside the phone. The signals on that connector must be extremely high impedance, so it wouldn't take much contamination to give a false signal as though the connector was plugged into a computer. I used quick drying electronics cleaning spray (see attached photo). I sprayed it into the exterior charging connector port to make sure it dissolved any possible film that might be on the contacts. I also sprayed it on the contacts on the edge card connector between the plug-in battery pack and the contacts on the circuit board. I didn't go any further into the phone. I made sure to use enough to wash off the connector well, and let it drip out into the sink as I sprayed it onto those connectors. That spray dries extremely fast. I left the phone open a few minutes even though the spray dried within seconds. I put it back together and the problem is completely gone! If you try this, make sure to use spray cleaner that is meant to clean circuit boards and which won't leave any film or contamination. Also make sure you've removed the battery and that the phone is off. Make sure it is very dry before turning it on again, so using a quick drying cleaner like in the photo will help speed up the process.


Attachments

  • elect cleaner.jpg
    elect cleaner.jpg
    59.1 KB · Views: 1,516
