Howdy!

New to android, not new to code. I have my layout (semi) done, and was wondering if I am doing it in the most efficient manner possible. The layout seems very nested, and I am getting warnings about nested weights but do not know how else to proceed.

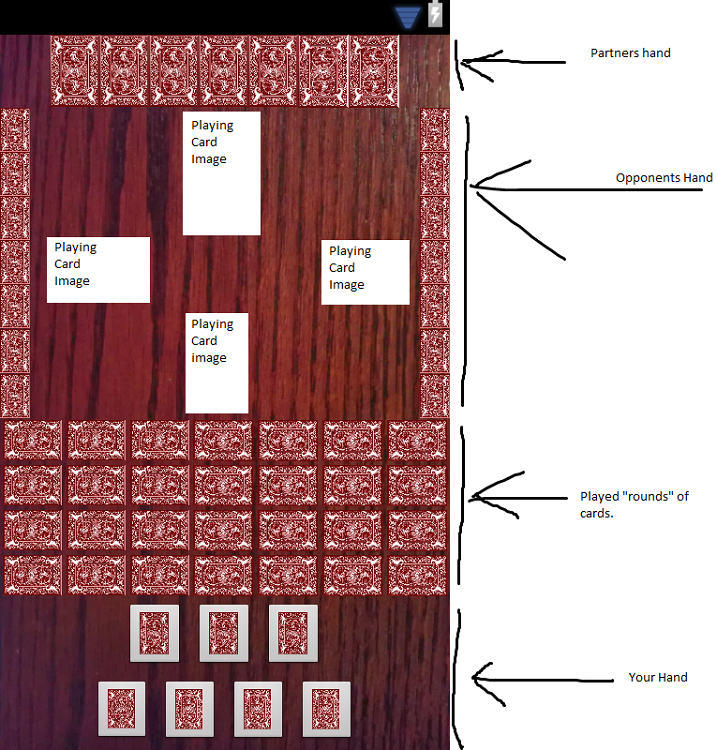

I am including my layout file, as well as what I want it to look like, the play field is all that is left.

**Small note, is there a way to shrink the margin of a ImageButton? the large ugly grey lines around the players hand is kinda unsightly. **

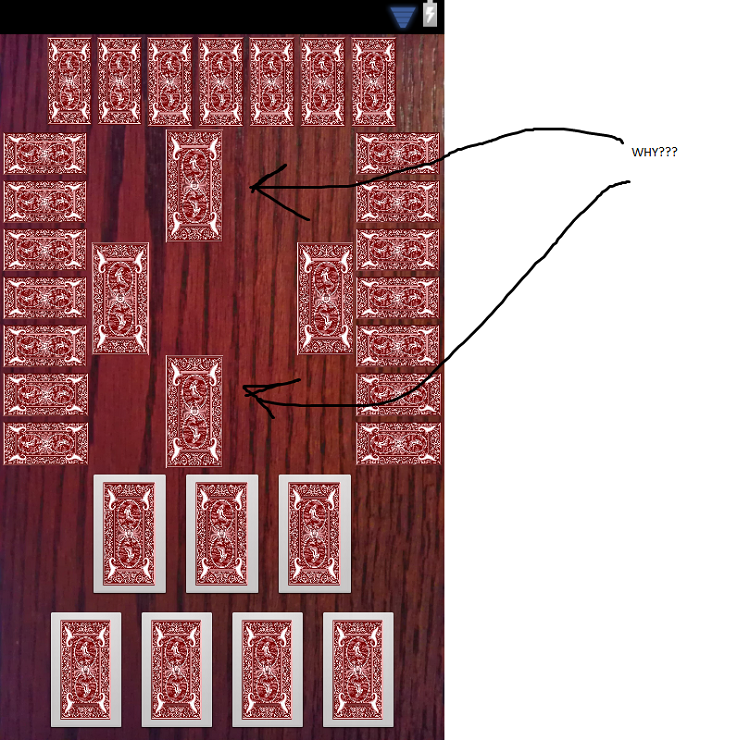

What I Have (Image and Image_Side are included in as an attachment for reference):
Code:
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/table"
    android:orientation="vertical" >

    <LinearLayout
        android:id="@+id/PartnerHand"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <TextView
            android:id="@+id/Spacer4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1" />

        <ImageView
            android:id="@+id/ImageView1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/ImageView2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/ImageView3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/ImageView4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/ImageView5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/ImageView6"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/ImageView7"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <TextView
            android:id="@+id/Spacer5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1" />
    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1" >

        <LinearLayout
            android:id="@+id/Opponent0Hand"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:orientation="vertical" >

            <ImageView
                android:id="@+id/Opponent00"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="left"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent01"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="left"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent02"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="left"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent03"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="left"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent04"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="left"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent05"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="left"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent06"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="left"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />
        </LinearLayout>

        <LinearLayout
            android:id="@+id/Opponent1Hand"
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:orientation="vertical" >

            <ImageView
                android:id="@+id/Opponent10"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="right"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent11"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="right"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent12"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="right"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent13"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="right"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent14"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="right"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent15"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="right"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />

            <ImageView
                android:id="@+id/Opponent16"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_gravity="right"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image" />
        </LinearLayout>
    </LinearLayout>

    <LinearLayout
        android:id="@+id/PartnerPlayed"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <ImageView
            android:id="@+id/Partner_0"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Partner_1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Partner_2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Partner_3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Partner_4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Partner_5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Partner_6"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />
    </LinearLayout>

    <LinearLayout
        android:id="@+id/Opponent0Played"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <ImageView
            android:id="@+id/Opponent0_0"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent0_1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent0_2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent0_3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent0_4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent0_5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent0_6"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />
    </LinearLayout>

    <LinearLayout
        android:id="@+id/Opponent1Played"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <ImageView
            android:id="@+id/Opponent1_0"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent1_1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent1_2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent1_3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent1_4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent1_5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Opponent1_6"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />
    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <ImageView
            android:id="@+id/Player_0"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Player_1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Player_2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Player_3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Player_4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Player_5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />

        <ImageView
            android:id="@+id/Player_6"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="1dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image_side" />
    </LinearLayout>

    <LinearLayout
        android:id="@+id/PlayerHand0"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <TextView
            android:id="@+id/Spacer0"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="2" />

        <ImageButton
            android:id="@+id/Player_0"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_gravity="center"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player_1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_gravity="center"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player_2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_gravity="center"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <TextView
            android:id="@+id/Spacer1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="2" />
    </LinearLayout>

    <LinearLayout
        android:id="@+id/PlayerHand1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <TextView
            android:id="@+id/Spacer2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1.5" />

        <ImageButton
            android:id="@+id/Player_3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player_4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player_5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player_6"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <TextView
            android:id="@+id/Spacer3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1.5" />
    </LinearLayout>

</LinearLayout>

What I Want:
***See Attachment Rough.png***


Attachments

  • image.jpg
    115 KB · Views: 69
  • image_side.jpg
    131.1 KB · Views: 93
  • rough.png
    761.2 KB · Views: 70
I have removed the previously played card pieces, too annoying to deal with right now.

I have implemented the cards being played on the table, yet they do not seem to center correctly and I do not know why. I think it has to do with the cards being in a table row, so they are lining up with that column....Any Help is greatly appreciated.

New Layout:
Code:
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/table"
    android:orientation="vertical" >

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <Space
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1" />

        <ImageView
            android:id="@+id/Player0_card0"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="2dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/Player0_card1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="2dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/Player0_card2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="2dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/Player0_card3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="2dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/Player0_card4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="2dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/Player0_card5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="2dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageView
            android:id="@+id/Player0_card6"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="2dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <Space
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1" />
    </LinearLayout>

    <RelativeLayout
        android:id="@+id/Play_Space"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1" >

        <LinearLayout
            android:id="@+id/Opponent0_Hand"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:layout_alignParentLeft="true"
            android:orientation="vertical"
            android:weightSum="7" >

            <ImageView
                android:id="@+id/Player1_card0"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player1_card1"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player1_card2"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player1_card3"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player1_card4"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player1_card5"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player1_card6"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />
        </LinearLayout>

        <LinearLayout
            android:id="@+id/Opponent1_Hand"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:layout_alignParentRight="true"
            android:orientation="vertical"
            android:weightSum="7" >

            <ImageView
                android:id="@+id/Player2_card0"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player2_card1"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player2_card2"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player2_card3"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player2_card4"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player2_card5"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />

            <ImageView
                android:id="@+id/Player2_card6"
                android:layout_width="wrap_content"
                android:layout_height="0dp"
                android:layout_margin="2dp"
                android:layout_weight="1"
                android:adjustViewBounds="true"
                android:scaleType="centerInside"
                android:src="@drawable/image_side" />
        </LinearLayout>

        <TableLayout
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_alignParentBottom="true"
            android:layout_alignParentTop="true"
            android:layout_toLeftOf="@+id/Opponent1_Hand"
            android:layout_toRightOf="@+id/Opponent0_Hand"
            android:weightSum="3" >

            <TableRow
                android:layout_width="match_parent"
                android:layout_height="0dp"
                android:layout_weight="1" >

                <ImageView
                    android:id="@+id/Played0"
                    android:layout_width="wrap_content"
                    android:layout_height="match_parent"
                    android:adjustViewBounds="true"
                    android:scaleType="fitEnd"
                    android:src="@drawable/image" />
            </TableRow>

            <TableRow
                android:layout_width="match_parent"
                android:layout_height="0dp"
                android:layout_weight="1" >

                <ImageView
                    android:id="@+id/Played1"
                    android:layout_width="wrap_content"
                    android:layout_height="match_parent"
                    android:adjustViewBounds="true"
                    android:scaleType="fitStart"
                    android:src="@drawable/image" />

                <ImageView
                    android:id="@+id/Played2"
                    android:layout_width="wrap_content"
                    android:layout_height="match_parent"
                    android:adjustViewBounds="true"
                    android:scaleType="fitEnd"
                    android:src="@drawable/image" />
            </TableRow>

            <TableRow
                android:layout_width="match_parent"
                android:layout_height="0dp"
                android:layout_weight="1" >

                <ImageView
                    android:id="@+id/Played3"
                    android:layout_width="wrap_content"
                    android:layout_height="match_parent"
                    android:adjustViewBounds="true"
                    android:scaleType="fitEnd"
                    android:src="@drawable/image" />
            </TableRow>
        </TableLayout>
    </RelativeLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <Space
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1" />

        <ImageButton
            android:id="@+id/Player3_card0"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player3_card1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player3_card2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <Space
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1" />
    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal" >

        <Space
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight=".5" />

        <ImageButton
            android:id="@+id/Player3_card3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player3_card4"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player3_card5"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <ImageButton
            android:id="@+id/Player3_card6"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_margin="3dp"
            android:layout_weight="1"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@drawable/image" />

        <Space
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight=".5" />
    </LinearLayout>

</LinearLayout>

New Images:
see attachments


Attachments

  • image.jpg
    89.7 KB · Views: 58
  • image_side.jpg
    109.1 KB · Views: 56
  • table.jpg
    446.1 KB · Views: 59
  • rough.png
    802.8 KB · Views: 84
You must log in or register to reply here.
Back
Top Bottom
