Root [PhilZ] [MS323, D320N, D325] PhilZ Recovery v6.57.9

What about fastboot flash laf? Fastboot works fine when you flash something on top of it. Wouldn't it just rely on the update-script? Or maybe, a bash inside the zip? I'm not saying anyone one is right, just saying idk and this caught my interest.

crutchcorn said:
PhilZ Recovery
This recovery is for the LG L70 (MS323). It has been tested and works 100%.

DISCLAIMER: I am not responsible for anything that can happen to your device when using this. Your phone = Your responsibility. Your bootloader must be unlocked to use this.

NOTE: Some L70 devices have been reported to not boot to recovery with the device powered down, just a heads up for anyone that hasn't tried it. Be sure that your device is able to boot to recovery from power off, if it doesn't then restore your laf partition and you will have to unbrick if you brick instead of restoring a backup.

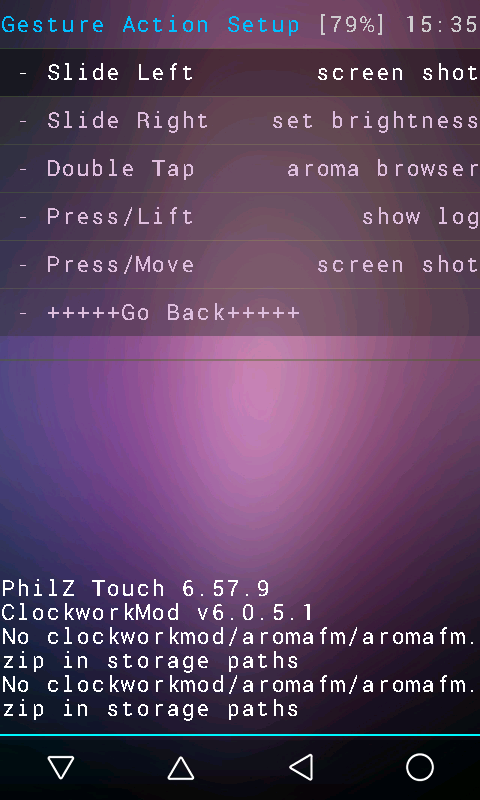

View attachment 80233 View attachment 80234

The Goods


Instructions:

Fastboot users

Download the recovery.img to your computer and open up terminal or command prompt and cd to the directory where the recovery.img is.

Example:
Windows
Code:
cd Downloads
Linux
Code:
cd ~/Downloads
Now that you are in the recovery.img's directory, boot into fastboot mode by powering off the device, from power off, plug in your usb, power on the device, as soon as it starts to boot, release the power button and hold volume up until in fastboot mode.

Now in terminal or command prompt, type:
Code:
fastboot flash recovery recovery.img
Reboot
Code:
fastboot reboot
Once booted, go download this awesome app to make rebooting to recovery easy, HERE

People who restored the laf partition, follow these steps:

Place the recovery.img in the root of your internal sd card.

Open up command prompt or terminal and type:
Code:
adb shell
Code:
su
Now it is time to overwrite your stock recovery with cwm, type:
Code:
dd if=/sdcard/recovery.img of=/dev/block/platform/msm_sdcc.1/by-name/recovery
That's it, download this awesome app to reboot to recovery HERE

Keep in mind, when rebooting from recovery, it will ask you to do 2 things, select no for the first option and select yes for fix root or you will lose your root. To boot to recovery power off device, power on the device, and wait until it gets to the dim LG logo and try to interrupt the long vibration by pressing volume down a few times, if done correctly, your phone will stop the first boot and start another one that boots you to recovery. Timing is key so it might take a few tries

Aroma File Manager And Terminal

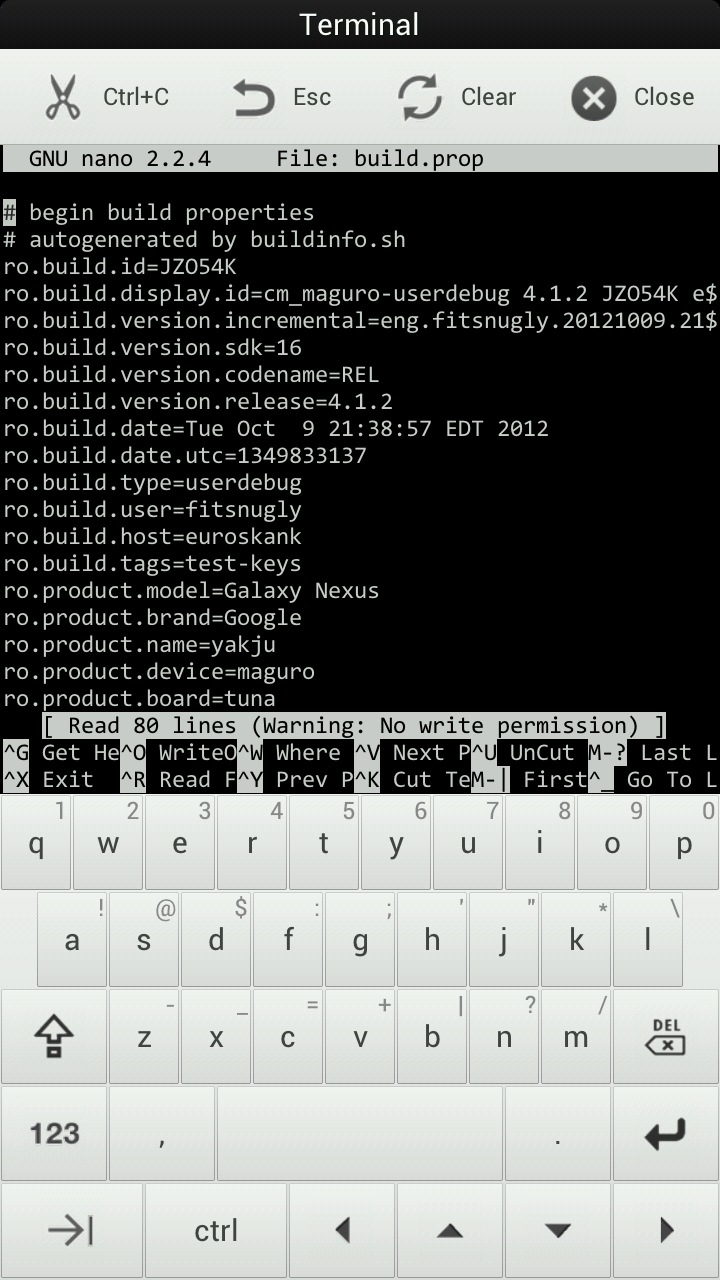

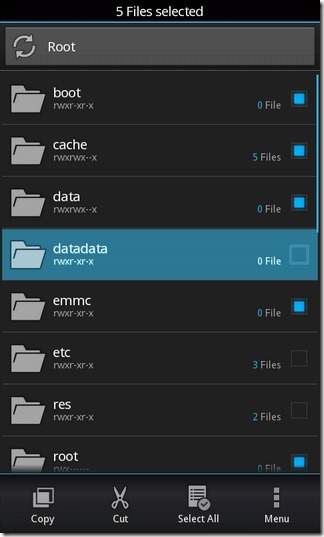

Aroma File Manager And Terminal is a lifesaver, allowing you to use a file manager and terminal right from recovery. It's even theme-able! Here are some screens:
View attachment 80235 View attachment 80236

In order to install Aroma, you just have to flash this file:
http://forum.xda-developers.com/attachment.php?attachmentid=2231581&d=1378202418
That's it!

As per the norm, credit does not go to me but rather

Just thought I'd share, was never given it's own thread. I also totally copied + pasted Chevan's OG CWM thread. (If anyone else worked on this, let me know)
Click to expand...




using cd download then the first fastboot code didnt work for me so u sued a adb method i saw and this is what is says
plz help

i cant power down and it says not to unplug help soon plz

will it be safe to unplug it anyways? cuz i cant get it to stop

or will it take really long that it being on 0 after 30 mins is likely?

dont even know if that black menu on my phone is the fast boot

Last edited:
deadfref said:

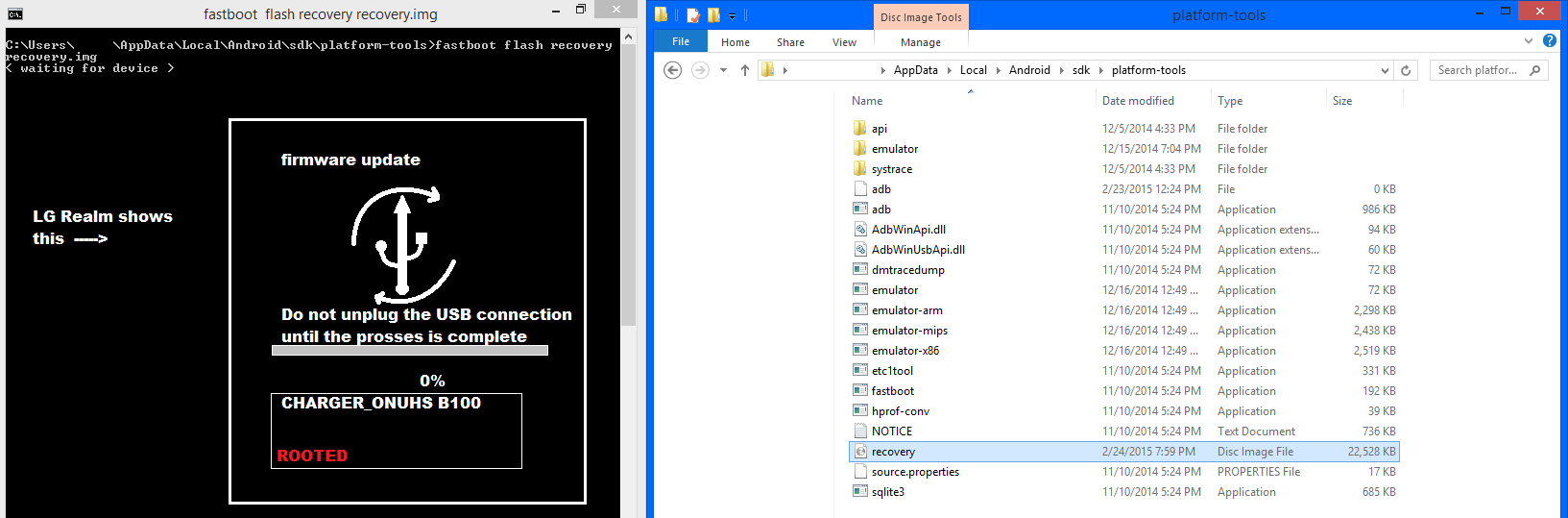

View attachment 83073

using cd download then the first fastboot code didnt work for me so u sued a adb method i saw and this is what is says
plz help

i cant power down and it says not to unplug help soon plz

will it be safe to unplug it anyways? cuz i cant get it to stop

or will it take really long that it being on 0 after 30 mins is likely?
Click to expand...


just did adb devices and noticed it didnt show it
i cant remember how to get it to show
usb debugging is enabled unless the phone being in the firmware update screen wont let it

hello there, I have 2 questions.. :)
Im newbie in all this 'android things' and need to know something..
1. is recovery.img packed inside boot.img, I mean your recovery.img have kernel in it? :)
2. can I replace Philz Touch with Download Mode/Fastboot/Recovery, or that file is flashed only on one specific place? (want to use some other key combos for calling Philz from turned off device, if possible?) :)

Sloba89 said:
hello there, I have 2 questions.. :)
Im newbie in all this 'android things' and need to know something..
1. is recovery.img packed inside boot.img, I mean your recovery.img have kernel in it? :)
2. can I replace Philz Touch with Download Mode/Fastboot/Recovery, or that file is flashed only on one specific place? (want to use some other key combos for calling Philz from turned off device, if possible?) :)
Click to expand...
No worries mate.
1. No.
2. The only keycombo we have been able to get is done by overwriting the laf.img - this allows you to boot into PhilZ upon VolUp+Power+USBPluggedIn

Thank for your reply @crutchcorn !
1. I asked this, because when I do nandroid backup with PhilZ, my boot.img and recovery.img is same size, about 22mb, but original Carbon Rom 4.4.4 boot.img is 8mb. why is that happening? :)
2. Hmm, when I overwrite laf.img, what default action from it will I kill - Download Mode? I use Download Mode when use LG Flash Tool with stock .kdz firmwares. There will no be sideeffects if PhilZ is my default laf.img? :)
Sorry for my bad english! :)

Sloba89 said:
Thank for your reply @crutchcorn !
1. I asked this, because when I do nandroid backup with PhilZ, my boot.img and recovery.img is same size, about 22mb, but original Carbon Rom 4.4.4 boot.img is 8mb. why is that happening? :)
2. Hmm, when I overwrite laf.img, what default action from it will I kill - Download Mode? I use Download Mode when use LG Flash Tool with stock .kdz firmwares. There will no be sideeffects if PhilZ is my default laf.img? :)
Sorry for my bad english! :)
Click to expand...
1. Does it boot at all? If it works then IDK... I have some ideas but fear being stupid. :P
2. Firmware B and C are flashable from PhilZ in one way or another. Because of this - you don't need Download mode. You can always restore your laf.img if you need to

crutchcorn said:
PhilZ Recovery
This recovery is for the LG L70 (MS323). It has been tested and works 100%.

DISCLAIMER: I am not responsible for anything that can happen to your device when using this. Your phone = Your responsibility. Your bootloader must be unlocked to use this.

NOTE: Some L70 devices have been reported to not boot to recovery with the device powered down, just a heads up for anyone that hasn't tried it. Be sure that your device is able to boot to recovery from power off, if it doesn't then restore your laf partition and you will have to unbrick if you brick instead of restoring a backup.

View attachment 80233 View attachment 80234

The Goods


Instructions:

Fastboot users

Download the recovery.img to your computer and open up terminal or command prompt and cd to the directory where the recovery.img is.

Example:
Windows
Code:
cd Downloads
Linux
Code:
cd ~/Downloads
Now that you are in the recovery.img's directory, boot into fastboot mode by powering off the device, from power off, plug in your usb, power on the device, as soon as it starts to boot, release the power button and hold volume up until in fastboot mode.

Now in terminal or command prompt, type:
Code:
fastboot flash recovery recovery.img
Reboot
Code:
fastboot reboot
Once booted, go download this awesome app to make rebooting to recovery easy, HERE

People who restored the laf partition, follow these steps:

Place the recovery.img in the root of your internal sd card.

Open up command prompt or terminal and type:
Code:
adb shell
Code:
su
Now it is time to overwrite your stock recovery with cwm, type:
Code:
dd if=/sdcard/recovery.img of=/dev/block/platform/msm_sdcc.1/by-name/recovery
That's it, download this awesome app to reboot to recovery HERE

Keep in mind, when rebooting from recovery, it will ask you to do 2 things, select no for the first option and select yes for fix root or you will lose your root. To boot to recovery power off device, power on the device, and wait until it gets to the dim LG logo and try to interrupt the long vibration by pressing volume down a few times, if done correctly, your phone will stop the first boot and start another one that boots you to recovery. Timing is key so it might take a few tries

Aroma File Manager And Terminal
Aroma File Manager And Terminal is a lifesaver, allowing you to use a file manager and terminal right from recovery. It's even theme-able! Here are some screens:
View attachment 80235 View attachment 80236

In order to install Aroma, you just have to flash this file:
http://forum.xda-developers.com/attachment.php?attachmentid=2231581&d=1378202418
That's it!

As per the norm, credit does not go to me but rather

Just thought I'd share, was never given it's own thread. I also totally copied + pasted Chevan's OG CWM thread. (If anyone else worked on this, let me know)
Click to expand...
I am needing help going through these instructions for the lg realm
I get stuck with my phone reading"0%" and command window reading"waiting for device"(this is after i type my first command"fastboot flash recovery recovery.img")

I did skip the cd download code and used shift to open cmd in platform tools(see link in png)
would skipping that be my problem? and how exactly do i do that cd thing cuz it is not working for me.

deadfref said:
I am needing help going through these instructions for the lg realm
View attachment 84037
I get stuck with my phone reading"0%" and command window reading"waiting for device"(this is after i type my first command"fastboot flash recovery recovery.img")

I did skip the cd download code and used shift to open cmd in platform tools(see link in png)
would skipping that be my problem? and how exactly do i do that cd thing cuz it is not working for me.
Click to expand...
Not sure. Don't have a realm... :/ Sorry.

crutchcorn said:
Not sure. Don't have a realm... :/ Sorry.
Click to expand...
Had a realm once, got my money back real fast. I think theres a thread for the Realm now if anyone if not make one :) or go get a real l70 variant! Ms323 $80 right now in white!!

So I never found out who is the fella I can thank for philz on l70? If ever there was a recovery worthy of the "Nobel" Prize for a mobile recovery, id claim right to it, and gift it to them.

***** 100 100 100 A+++

-ps my overall scores for philz..
not hex, binary, or comping-language ha I need sleep
