Doesn't turn on

N

ntenis

Newbie

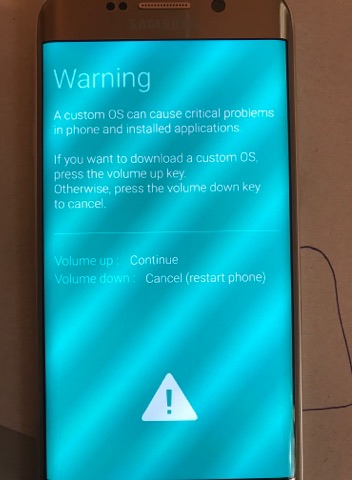

Hello i have a problem with my Samsung Galaxy S6 Edge. My phone doesn't open, i press the power button and it just Samung... in a blue with black screen. After this i try it with Power + Home + Volume down button and switches me to a page WARNING A custon OS can cause problems..... and press Volume Up: Continue or Volume Down: Cancel (restat phone). I try it volume down fist and nothing, i try volume up and switches me to an another page Downloadin (Do not turn off target) but again nothing.
Plese help me, have any way to recover the photos?


Attachments

  • Photo 1.jpg
    Photo 1.jpg
    49.3 KB · Views: 318
  • Photo 2.jpg
    Photo 2.jpg
    27.9 KB · Views: 262
  • Photo 3.jpg
    Photo 3.jpg
    34.7 KB · Views: 250
I'm not a Samsung expert but that sounds like it's booting into download mode. So the question is why?

Are all of the keys working normally? If some key combination during boot is used to get into modes like this then a stuck key can produce this result. In which case you might be able to unstick it.

Otherwise can you post clearer photos of the text. I think the first screen says that recovery is not detected, which is worrying, but I can't read the rest (too blurry). And have you ever tried to modify the system software (unlock, root, install custom recovery, etc)? Has the phone had a previous owner? Has it ever got wet? What happened before this started (anything, even stuff like running the battery flat)?

Hello and thank your for responding.
1- No I don’t have tried to modify the system software, only after problem i try to recovery date with iskysoft (but nothing).
2- No i have buy it new and doesn’t have previous owner.
3- No doesn’t got wet.

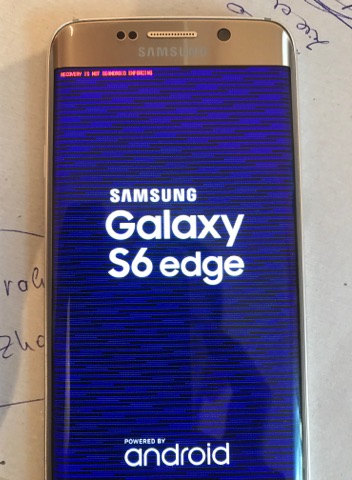

At the first photo with red text say: “Recovery is not seandroid enforcing.”
At secondary photo say:
“Odin mode
Product name: SM-G925I
Current binary: Custom
System status: Official
Reactivation lock: Off
Secure Download: Enable
Knox warranty void: 1 (0x0304)
RP SWREV: B:3 K:2 S:2

ntenis said:
Hello and thank your for responding.
1- No I don’t have tried to modify the system software, only after problem i try to recovery date with iskysoft (but nothing).
2- No i have buy it new and doesn’t have previous owner.
3- No doesn’t got wet.
At the first photo with red text say: “Recovery is not seandroid enforcing.”
At secondary photo say:
“Odin mode
Product name: SM-G925I
Current binary: Custom
System status: Official
Reactivation lock: Off
Secure Download: Enable
Knox warranty void: 1 (0x0304)
RP SWREV: B:3 K:2 S:2
Click to expand...

The Current Binary, and Knox Warranty statuses does look like either an attempt has been made to root and modify, or there's possibly a fault with the phone. Those should state "Official" and "0" if all was well.

Could be worth trying to re-flash the firmware with the appropriate ROM from Sammobile.com

Last edited:
mikedt said:
The Current Binary, and Knox Warranty statuses does look like either an attempt has been made to root and modify, or there's possibly a fault with the phone. Those should state "Official" and "0" if all was well.

Could be worth trying to re-flash the firmware with the appropriate ROM from Sammobile.com
Click to expand...
If i re-flash the firmware, can i save the photos from my phone?

Last edited:
Your screenshots indicate your S6 Edge is booting up into its Download mode. When it does this on its own that's often an indicator the installed operating system has become corrupted somehow, so the phone simply cannot boot up normally. And just so you're aware, you can manually boot up into Download mode by simultaneously holding down the Volume Down, the Home, and the Power buttons. But it's typically only required when you're trying to flash a different ROM. There's also Recovery mode (from a cold start simultaneously hold down the Volume Up, the Home, and Power buttons). Recovery is used to do fundamental maintenance tasks. See this site for more details on things like Recovery mode, Download mode, etc.:
https://www.hardreset.info/devices/samsung/samsung-g925i-galaxy-s6-edge/download-mode/

Do you keep your phone in a case? If so, take your phone out and see if it will restart normally. Just to eliminate the remote possibility your phone shifted around inside the case, causing those Download mode buttons to be pushed down.

Otherwise, you might want to try flashing your phone with its stock ROM. And for some background so you know what's going on, your phone's internal storage is divided up into several partitions. Most of them are dedicated to the operating system and are restricted access, with one partition set aside as the user's data partition (which is where all your data, like your photos, are stored). When you flash a ROM (with Samsung devices), this only pertains to those system partitions, that user data partition is left as is. So flashing a stock Samsung ROM should leave your photos, but do keep in mind flashing is not a trivial process. If anything goes wrong there's no guarantee your data won't be affected. It's always best to do a full backup before flashing you phone but in this instance your options don't allow for that.
-- One thing you might want to try first is using Samsung's Smart Switch utility to restore your phone:
https://www.samsung.com/us/smart-switch/
If it does work than you're all set. I wouldn't get your hopes up too much but it's worth trying. And when installing Smart Switch to a PC it'll also automatically be installing the latest Samsung driver (which you'll need to do the following).
-- The next thing to try is flashing the ROM. A good source for verified, stock, Samsung ROMs is Updato. I prefer it to sammobile as sammobile intentionally restricts the bandwidth of its upload servers to non-members. Anyway, go here, select the appropriate ROM that corresponds with your particular carrier:
https://updato.com/firmware-archive-select-model?q=SM-G925I&exact=1&r=&v=&rpp=100
It's very important to choose the proper one, ROMs are not interchangeable with each other. Different carriers rely on different types of cellular networks and the cellular radio chip inside each phone model has to be fully compatible with that cellular network. Each ROM has the drivers, firmware, and apps that matches up accordingly only with its matching phone model.
For a step-by-step guide on how to do the flashing process, see here:
https://updato.com/how-to/how-to-install-an-official-samsung-stock-firmware-using-odin
If you follow the directions properly there's a good chance your photos will still be there, so don't experiment by playing around with various options in the Odin utility.
And just in case, you might want to just use an older version of Odin. That guide article refers to using the latest version of Odin (currently 3.13.1) and it may work out fine for you but previous versions were typically weak as far as backwards-compatibility. Sometimes it's better to use an older version of Odin that corresponds with older hardware. So if needed, you can pick the version you need from here (scroll down to find what matches your situation):
https://www.droidviews.com/download-odin-tool-for-samsung-galaxy-devices-all-versions/
Lastly, if you don't have access to a Windows PC (Odin is a Windows utility) there's an Open Source alternative, Heimdall
https://glassechidna.com.au/heimdall/
Functionally it's the same as Odin, just note that the user interface is altered.

hello i flash a stock firmware according to the instructions but again the screen stuck on Samsung welcome page, o_O any idea???

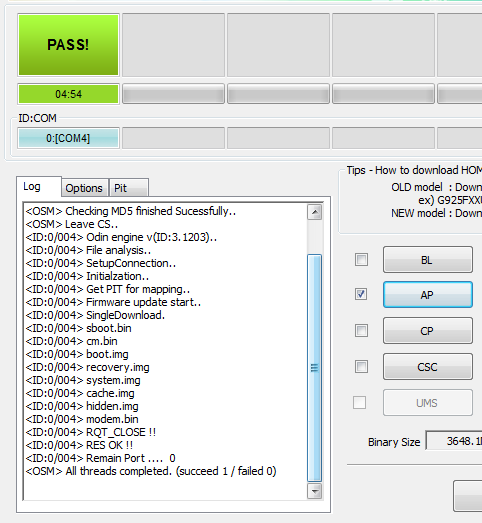

When you were doing the flashing process it should show you a green 'PASS' message when done, if you saw any kind of 'Failed' message what did it state?

OK, at least that's a good sign. Try rebooting your phone into its Recovery mode and select the 'wipe cache partition' option.
Recovery is a text-only interface so you need to use the indicated keys to navigate through the various menu options. Be careful not to accidentally select something by mistake. Anyway, try wiping the cache partition and see if that will allow your phone to boot up normally.
And this is very much a long shot but try booting up with the SIM card removed. Not likely but others have stated this might make a difference.

I
svim said:
OK, at least that's a good sign. Try rebooting your phone into its Recovery mode and select the 'wipe cache partition' option.
Recovery is a text-only interface so you need to use the indicated keys to navigate through the various menu options. Be careful not to accidentally select something by mistake. Anyway, try wiping the cache partition and see if that will allow your phone to boot up normally.
And this is very much a long shot but try booting up with the SIM card removed. Not likely but others have stated this might make a difference.
Click to expand...
I tried reboot my phone in recovery mode, but don’t open in recover mode...any idea??

Try re-downloading the ROM (in case the prior file was corrupted in any way during the download process and double-check you've selected the proper one) and go through the flashing process again. Also, flashing the stock Samsung ROM also installs a new Recovery so something either didn't 'take' or there's some other problem. Just want to emphasize checking you've chosen the appropriate ROM, not booting up properly and not even being able to boot up into Recovery mode indicate either a problem with the ROM or its not the correct one.

So just to confirm, no error messages while re-flashing with Odin?
Also, your phone still won't even boot up into Recovery Mode after that?

mikedt said:
The Current Binary, and Knox Warranty statuses does look like either an attempt has been made to root and modify, or there's possibly a fault with the phone. Those should state "Official" and "0" if all was well.

Could be worth trying to re-flash the firmware with the appropriate ROM from Sammobile.com
Click to expand...
Thats if samsung didnt ODIN LOCK his phone

webtron said:
HI. Sorry to invoke this old thread. I have a S6 Edge with the exact same issue. . Just wanted to know if you found a solution.
I download the correct firmware and pit file.. Odin shows pass. but phone doesnt boot otherwise. Only into Download mode. I suspect the knox warranty has somethin to do with this ?
Click to expand...
why do you suspect knox? is the phone rooted? can you post a screenshot of the odin's complete output?
