Apps Help - Tab Host and Image button in a single line.

[Vinodkumar]

Dear All,
Any help for my query?

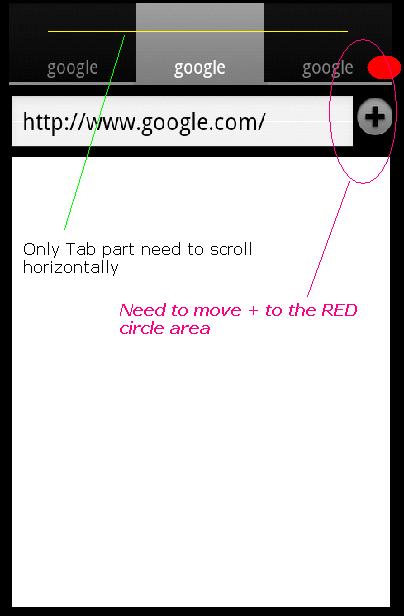

1. To create Tab along with IMAGE BUTTON in single Line.
2. ONLY TAB is Horizontally Scrollable but image button is fixed at the right extreme.

TAB | TAB | TAB | TAB | TAB | (+)
------Scrollable --------- --Fixed

<?xml version="1.0" encoding="utf-8"?>



<TabHost xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@android:id/tabhost"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:fadingEdge="horizontal">



<LinearLayout
androidrientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
androidadding="5dp">


<HorizontalScrollView android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:fillViewport="true"
android:scrollbars="none">

<TabWidget
android:id="@android:id/tabs"
android:layout_width="200px"
android:layout_height="wrap_content"
android:tag="tabPane">
</TabWidget>



</HorizontalScrollView>

<RelativeLayout
androidrientation="vertical"
android:layout_width="fill_parent"
android:layout_height="wrap_content">
<EditText
android:id="@+id/address_bar"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:layout_marginTop="10px"
android:layout_width="420px"
android:layout_height="70px"/>

<ImageButton android:background="@android:color/transparent"
android:layout_marginTop="10px"
android:id="@+id/add_btn"
android:layout_height="50px"
android:layout_width="50px"
android:src="@android:drawable/ic_menu_add"
android:layout_toRightOf="@id/address_bar">
</ImageButton>

</RelativeLayout>
<FrameLayout
android:id="@android:id/tabcontent"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
androidadding="2dp" />
</LinearLayout>

</TabHost>




Best Regards
Vinod



[AndroidSPCS]

Welcome to AF.com! Moving this to Android Development.
