Root Usb otg

I thought 3.0.x and up supported it. Do you have a "on the go" usb wire that you have tried, with the phone? Same goes for hid support too. I thought, anything honeycomb and up supports that as well. Not unless, it has to be turned on like some other devices.

This video is in another language, but they have it running on a 3D, so I would assume the same goes for our phone.

http://www.youtube.com/watch?v=CZjtHMaUzaM

Here is a "how to" on making a otg usb cable.

http://www.youtube.com/watch?v=COkLEJGo6vo&feature=related

All research I have done points to only hardware V1 having support for it. You still need a kernel with support (Anthrax does I think), and a rom that supports it (no current ones that I know of). Worse, all of our phones are Hardware V2.

I have an OTG cable, but I have yet to get it to work (I haven't put a lot of effort in yet).

Leslie Ann said:
All research I have done points to only hardware V1 having support for it. You still need a kernel with support (Anthrax does I think), and a rom that supports it (no current ones that I know of). Worse, all of our phones are Hardware V2.

I have an OTG cable, but I have yet to get it to work (I haven't put a lot of effort in yet).
Click to expand...

I think I saw some posts on anthrax forums that someone got it working on hardware v2.

I'm on hw0002 and it is working. Needs to have a powered usb hub or in my case I made a y cable and powered it with the phone charger

jdt265 said:
I'm on hw0002 and it is working. Needs to have a powered usb hub or in my case I made a y cable and powered it with the phone charger
Click to expand...

What kernel are you using? and rom? Mind snapping a shot of the cable you made? I would like to connect to my tv but sense the micro usb doubles as the hdmi I am not sure how to go about this.

jdt265 said:
I'm on hw0002 and it is working. Needs to have a powered usb hub or in my case I made a y cable and powered it with the phone charger
Click to expand...
I'm VERY interested in your setup, please post it.

It would (possibly) mean carrying a bit less to work if that functioned.

Using CM9 DT0.7.4 Anthrax kernal 3.2
In /system/ect/vold.fstab you will need to add

dev_mount usb /mnt/sdcard/usb auto /devices/platform/msm_hsusb_host.0/usb1

and add usb folder to /mnt/sdcard

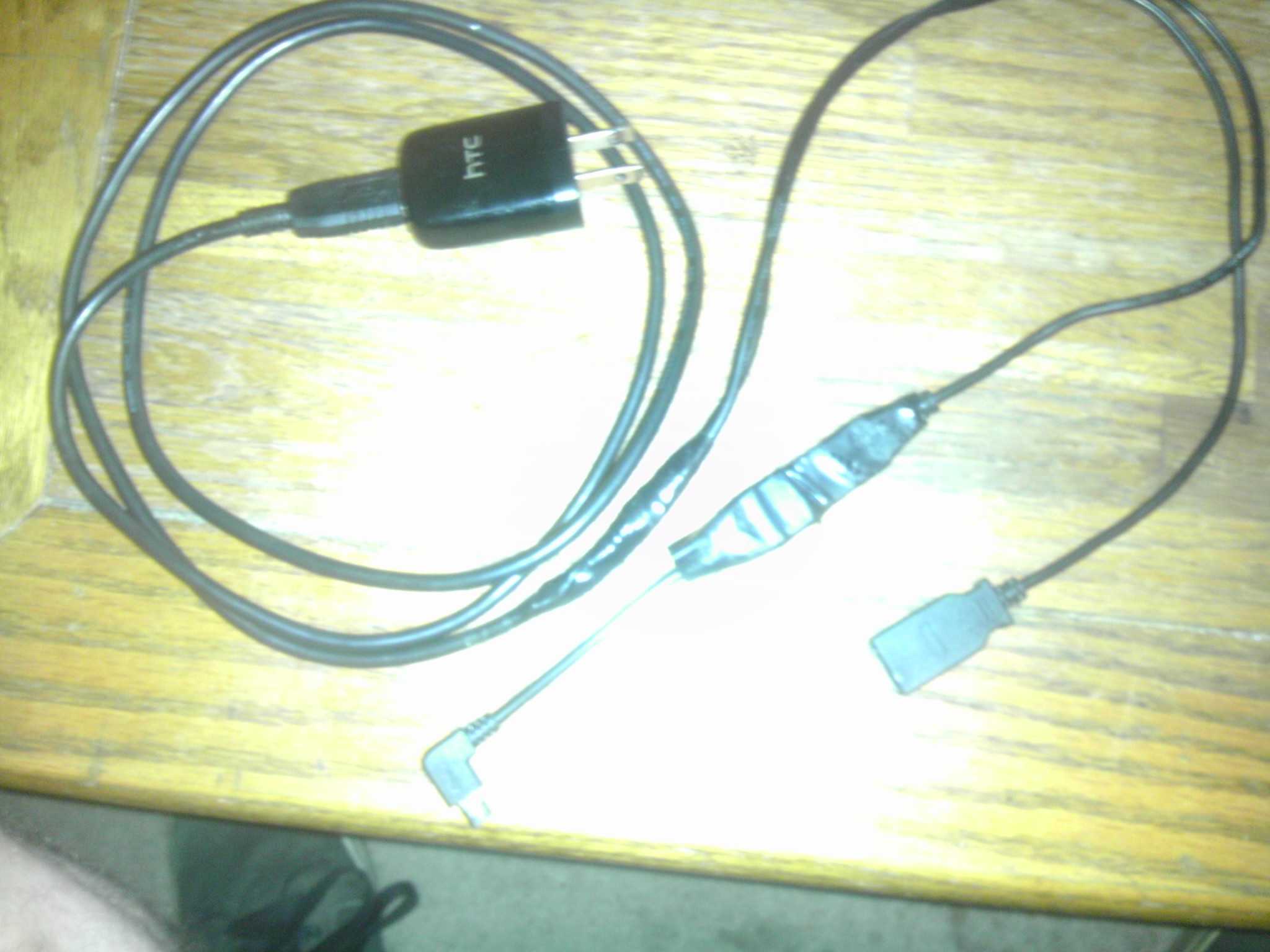

For the power side of the cable do not connect the shielding green and white wires it interferes with usb connection technically you only need the red and black wires for the power supply.


Attachments

  • IMG_20120822_135030.jpg
    415.1 KB · Views: 142
Tried this with the new mobster rom and the 3.2 anthrax kernel and it didnt work im trying to connect a pen drive with a usb female to micro male. Has anyone else been able to do this?

haro138 said:
Tried this with the new mobster rom and the 3.2 anthrax kernel and it didnt work im trying to connect a pen drive with a usb female to micro male. Has anyone else been able to do this?
Click to expand...

You need to splice in a power cable, as in jdt's pic. The phone won't power the USB device.
