flytouch 3 internal pictures

can someone post how to disassemble this flytouch 3. i see grey circles on 4 corners, but how do you remove them without messing them up

Rabid1 said:
Get a Sd tool like Sdformatter or Easeus. Remove the internal SD and try to repartion and format it. If neither app gives you errors you can reuse it or take the opportunity to put a larger sd in the device.

When you have two good sd, place one back in the FT3 and reassemble. The place the firmware files on the other card, insert it in the FT3 and flash as normal. The firmware will rebuild the internal SD card.
Click to expand...

So you mean to say just format the new sdcard with sd formatter and insert in the internal card slot. And the installation process is the usual one ie copy installation files on another sd card and insert it on the external Sd card slot and start the device. right

in_msz said:
So you mean to say just format the new sdcard with sd formatter and insert in the internal card slot. And the installation process is the usual one ie copy installation files on another sd card and insert it on the external Sd card slot and start the device. right
Click to expand...

Correct.

whiteando said:
Hi!

I purchased a flytouch 3 two weeks ago. Unfortunately after 1 day! it started to vibrate and doesn't boot. I read a lot of forums and I understood that it should be charged... When I plug the charger, the green led lights couple of seconds, after this time goes out. (I have never seen red led on this pad.) Sometimes the led lights more time (hours) but bothe the device and charger are cold, I don't think it is charging.
My question is: what else can be done in a non invasive way becouse I'm still trying to convince the supplier to replace the device. In case this fails, I have to do something...
Click to expand...

You probably are having problems with the charger but the screen works? that vibration it does is long or short? If it's long the tablet is working and you have one cable lose inside. If its short the problem is the charger or the battery.

My touchscreen stop working!! last time my screen turn off and it wont work, so the supplier told me to open it and conect one lose cable, this time the screen works but the touchscreen not. I really don't want to open it again. I read in other chats to plug a mouse and calibrate the tablet, but it doesn't work.

Someone with ideas?

baliss7 said:
My touchscreen stop working!! last time my screen turn off and it wont work, so the supplier told me to open it and conect one lose cable, this time the screen works but the touchscreen not. I really don't want to open it again. I read in other chats to plug a mouse and calibrate the tablet, but it doesn't work.

Someone with ideas?
Click to expand...

Hi my friend?
you fixed it?
I have similar problem
my touch cable is disconected and I do not know how connect this to mother board
please help me.

Hi, I got a new flytouch 3 (Android 2.3)
Problem: build in microphone is very bad. You opened the case, is this microphone an extra device?
guess condenser mic... is there a change to replace it?

flytouch99 said:
Hi, I got a new flytouch 3 (Android 2.3)
Problem: build in microphone is very bad. You opened the case, is this microphone an extra device?
guess condenser mic... is there a change to replace it?
Click to expand...

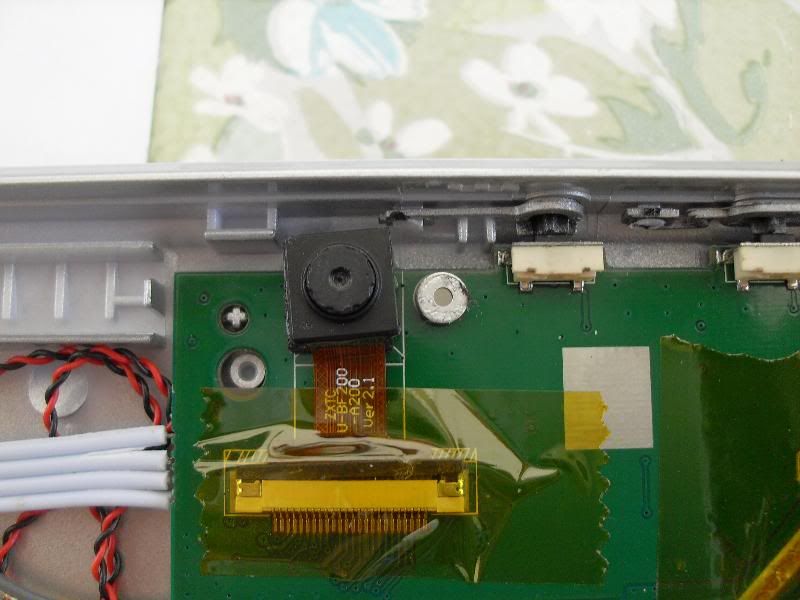

Can't comment on a 'new' flytouch 3, but the 'old' flytouch 3 has an electret mic soldered on the pcb... the silver circle in the middle of this picture..


So yes.. it can be replaced.. but would a replacement be any better?

flytouch99 said:
Hi, I got a new flytouch 3 (Android 2.3)
Problem: build in microphone is very bad. You opened the case, is this microphone an extra device?
guess condenser mic... is there a change to replace it?
Click to expand...

Can't comment on a 'new' flytouch 3, but the 'old' flytouch 3 has an electret mic soldered on the pcb... the silver circle in the middle of this picture..


So, assuming the pcb hasn't changed, yes.. it can be replaced.. but would a replacement be any better?

Hi everyone, I'm new to the forum. I too have problems with GPS. Someone can put photos from the GPS receiver to see if the welds are defective. thanks

pamvilla said:
Hi everyone, I'm new to the forum. I too have problems with GPS. Someone can put photos from the GPS receiver to see if the welds are defective. thanks
Click to expand...

The gps receiver is embedded on the main system board but I think you mean the feeder wiring connections...

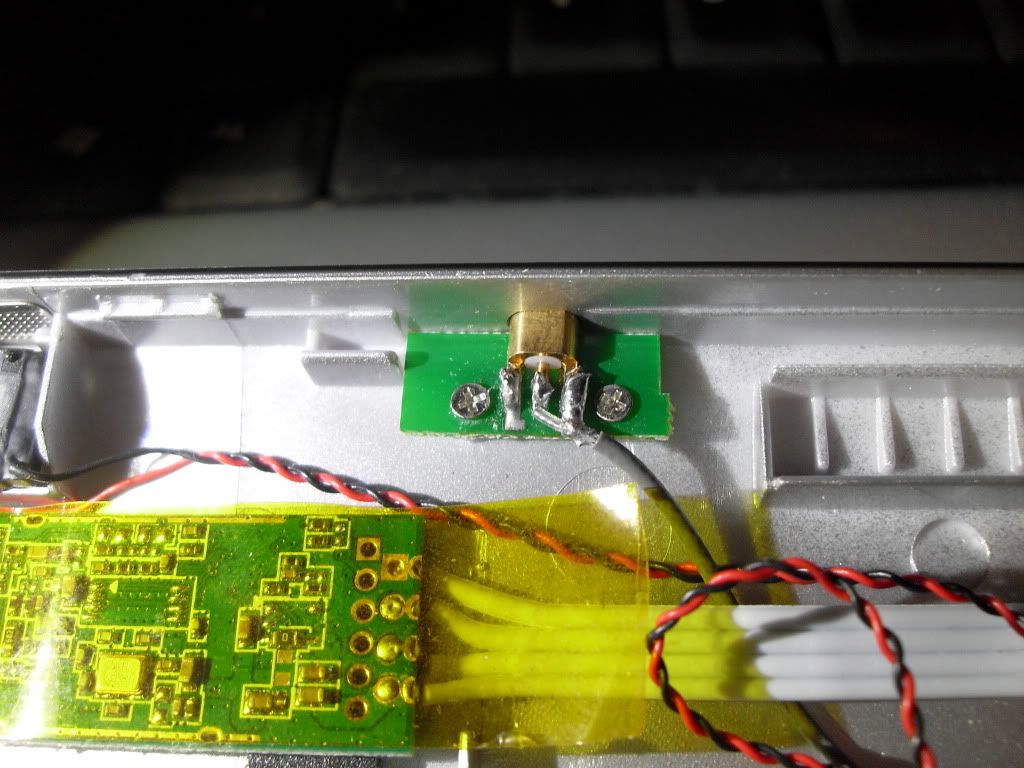

Here is the socket end

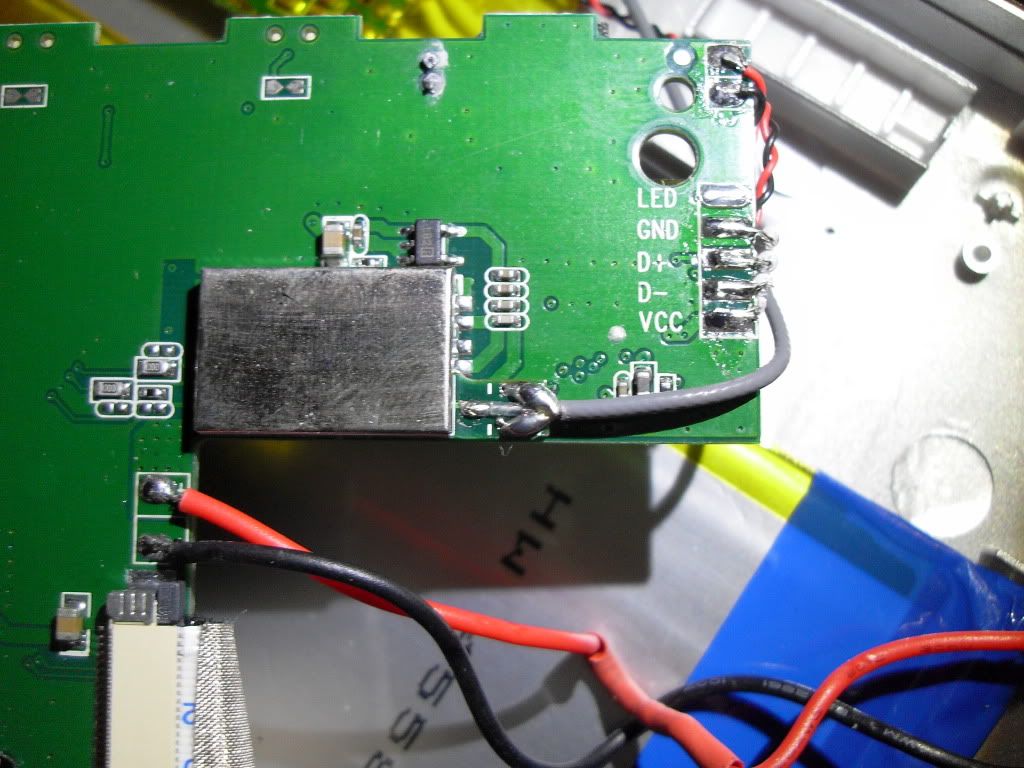

and here is the pcb end



You are looking for solder bridging the contacts. It should look like these pictures if it is good.

Hi did anyone come to a conclusion as to whether replacing the electret mic element would improve the sensitivity as mine is grim? Has anyone tried using a usb headset to bypass the internal mic issue,as it stands skype voice or video calling is dire.

I seem to have the same problem as everyone...but nobody confirms the solution...

Just bought the flytouch3... powered it up...all I have is the Android robot...and nothing else?

Is this really just a power problem?

I am looking for an image of the circuit board where the power cord enters the female socket (bottom right). My charger delivers power but the battery is not charging.
I opened the tablet to examine. (Won't release on the left side facing the tablet - afraid to pry too much.)
I wonder if a part has broken off connecting to the center of the charger pin. It would be nice to see what the original looks like.
Can anyone help?
