Root [HOW TO](gaining root)unlock,downgrade,and achieve s-off with htcDev
- Thread starter scotty85
- Start date
-
- Tags
- htc droid incredible
scotty85
Extreme Android User

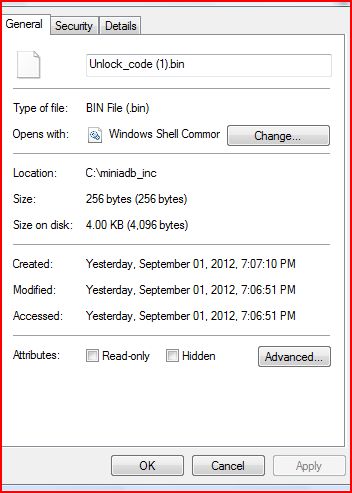

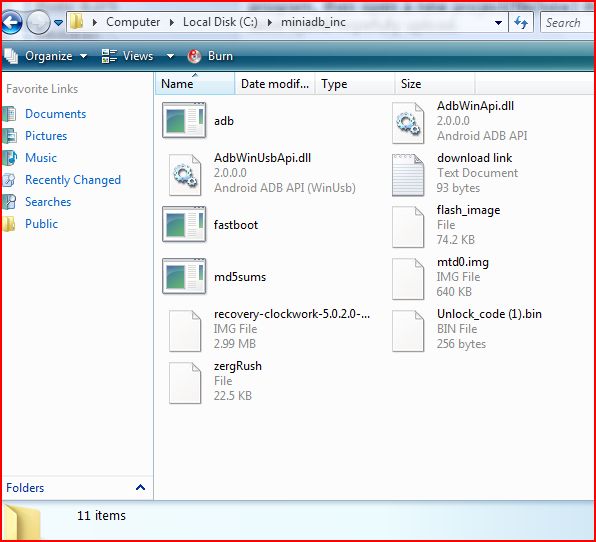

ahhh the pic was a good idea,the prollem is now obvious. :smokingsomb:
you have apparently downloaded 2 unlock_code.bin files,at some point in time,as evidenced by the (1) in your file "Unlock_code(1).bin"
change the name in miniadb_inc to just "Unlock_code.bin" and it should flash fine. you were getting error: cannot load 'Unlock_code.bin becasue the file with that name wasnt there
DIncNewbie
Newbie
scotty, just checked the phone and now I'm not exactly sure what I've got for recovery. When I go to recovery from HBOOT I get dark screen, pic of phone lying on its back, and the two circling arrows, for about 2 seconds...then the red triangle + exclamation icon. Is this stock recovery? I did have ClockworkMod on it at one time, but did that get zapped when I flashed stock GB?
Aside from that, phone shows software number 4.08.605.2, which is confusing (to me) since that implies that I should already have the new HBOOT and radio? (My radio version is 2.15.10.10.07.)
scotty85
Extreme Android User
yup... what youre seeing is the stock recovery. when you ran the ruu,it overwrote clockwork with the stock recovery image,just as it did the hboot.
the 1.02 hboot did not appear in RUUs until a later version (.92 comes in one you flashed). im not certain exactly what build contained 1.02. 1.07 is new for 4.08.605.15.
if you OTA,the phone should replace the bootloader with the newer version.
wow thanks! that was it!!! not sure how that happened but i feel pretty stupid..lol
scotty85
Extreme Android User
Don't feel stupid,that's definitely an easy thing to overlook,especially if you're not used to doing this sort of thing. I've made my share of mistakes,for sure.
I'm glad that fixed it for you. Holler if you have any other questions
thanks again scotty85 for all the help as well as everyone else. let me ask though before i go to far along with this process. these are the main things i would like to achieve with my phone::
1-get rid of the verizon bloatware
2-stop that annoying sw update message from popping up as i do not want to load the new sw due to issues i have read about.
3- be able to tether or wireless tether to use my phone for internet for another device.
those are really my main goals some maybe i just have to get to s off??
or do i need to go further to get this done?
1-get rid of the verizon bloatware
2-stop that annoying sw update message from popping up as i do not want to load the new sw due to issues i have read about.
3- be able to tether or wireless tether to use my phone for internet for another device.
those are really my main goals some maybe i just have to get to s off??
or do i need to go further to get this done?
scotty85
Extreme Android User
i would strongly reccomend it. s-off is better in many ways and will make your life much easier.
MonsterMike
Newbie
Hello guys,
i am having a problem with my inc i just got.. it was rooted when i got it but came with no sdcard an it is stuck in clockworkmod recovery and hboot.. the first screen says incrediblec xd ship s-off, hboot-0.92.0000, microp-0417, touch panel-atmel224_10aa, radio-2.15.00.07.28, jul 23 2010, 18:06:51. and when it goes to the clockworkmod recovery its ClockworkMod Recovery v5.0.2.0 with a tophat in the background. and i cant get any further than this nomatter what i select or do. i have a 16gb sd chip of mine for it. but dont know what to do from here?!?!? can anyone please help me...
i am having a problem with my inc i just got.. it was rooted when i got it but came with no sdcard an it is stuck in clockworkmod recovery and hboot.. the first screen says incrediblec xd ship s-off, hboot-0.92.0000, microp-0417, touch panel-atmel224_10aa, radio-2.15.00.07.28, jul 23 2010, 18:06:51. and when it goes to the clockworkmod recovery its ClockworkMod Recovery v5.0.2.0 with a tophat in the background. and i cant get any further than this nomatter what i select or do. i have a 16gb sd chip of mine for it. but dont know what to do from here?!?!? can anyone please help me...
scotty85
Extreme Android User
what happens when you power the phone on normally?
you can try wiping data/factory reset in clockwork,and see if the phone boots then. if not,you can try flashing a rom. if that fails,you can run one of the GB ruus.
Shipped ROMs is a utility run on your pc. start it with the phone in fastboot mode
Shipped ROMs is a .zip file that you rename to PB31IMG,place on your FAT32 formatted sd card,and flash in hboot.
since youre allready s-off,re-root will be easy(just install recovery as a PB31IMG file in hboot)
last and not least,make sure youre using the optic tracpad thingy to manipulate CW recovery. a very common error is to try and use the power buttion to select,wich will take you back a menu(or to the hat if youre on the main menu)
you can try wiping data/factory reset in clockwork,and see if the phone boots then. if not,you can try flashing a rom. if that fails,you can run one of the GB ruus.
Shipped ROMs is a utility run on your pc. start it with the phone in fastboot mode
Shipped ROMs is a .zip file that you rename to PB31IMG,place on your FAT32 formatted sd card,and flash in hboot.
since youre allready s-off,re-root will be easy(just install recovery as a PB31IMG file in hboot)
last and not least,make sure youre using the optic tracpad thingy to manipulate CW recovery. a very common error is to try and use the power buttion to select,wich will take you back a menu(or to the hat if youre on the main menu)
ok i started out early this morning but im now stuck on step 4.
i followed all instructions all the way to the end but when the last c=prompt command to fast reboot the phone reboots but gets hung up on the" droid eye" and then just keeps rebooting and rebooting?? i cant get the phone to do anything else? looks like my phone is now useless...
i hope its ok that i have attached pics of my c-prompt command window for you to take a look at.. as always thanks for your time! all pics are in order, just couldnt figure out how to make it one big picture..lol
upadate:::: i pulled the battery while it was doing its boot loop and was able to get to hboot. i see that it says (in pink) ****locked (00W)*****
incredible xc ship S-ON
hboot-1.02.0000
microp-0417
radio-2.15.00.07.28
dec 21 2011,23:37:16
this is what is in the command window if it helps to not dispay it as an actual pictue.

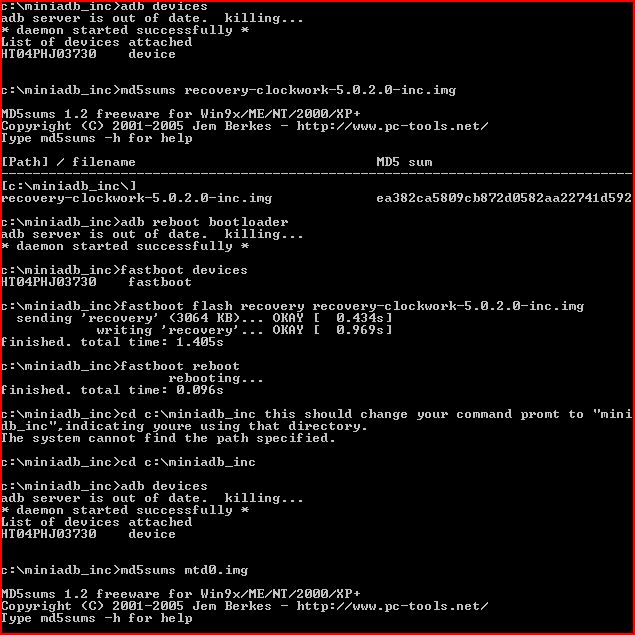

c:\miniadb_inc>adb devices
adb server is out of date. killing...
* daemon started successfully *
List of devices attached
HT04PHJ03730 device
c:\miniadb_inc>md5sums recovery-clockwork-5.0.2.0-inc.img
MD5sums 1.2 freeware for Win9x/ME/NT/2000/XP+
Copyright (C) 2001-2005 Jem Berkes - http://www.pc-tools.net/
Type md5sums -h for help
[Path] / filename MD5 sum
-------------------------------------------------------------------------------
[c:\miniadb_inc\]
recovery-clockwork-5.0.2.0-inc.img ea382ca5809cb872d0582aa22741d592
c:\miniadb_inc>adb reboot bootloader
adb server is out of date. killing...
* daemon started successfully *
c:\miniadb_inc>fastboot devices
HT04PHJ03730 fastboot
c:\miniadb_inc>fastboot flash recovery recovery-clockwork-5.0.2.0-inc.img
sending 'recovery' (3064 KB)... OKAY [ 0.434s]
writing 'recovery'... OKAY [ 0.969s]
finished. total time: 1.405s
c:\miniadb_inc>fastboot reboot
rebooting...
finished. total time: 0.096s
c:\miniadb_inc>cd c:\miniadb_inc this should change your command promt to "mini
db_inc",indicating youre using that directory.
The system cannot find the path specified.
c:\miniadb_inc>cd c:\miniadb_inc
c:\miniadb_inc>adb devices
adb server is out of date. killing...
* daemon started successfully *
List of devices attached
HT04PHJ03730 device

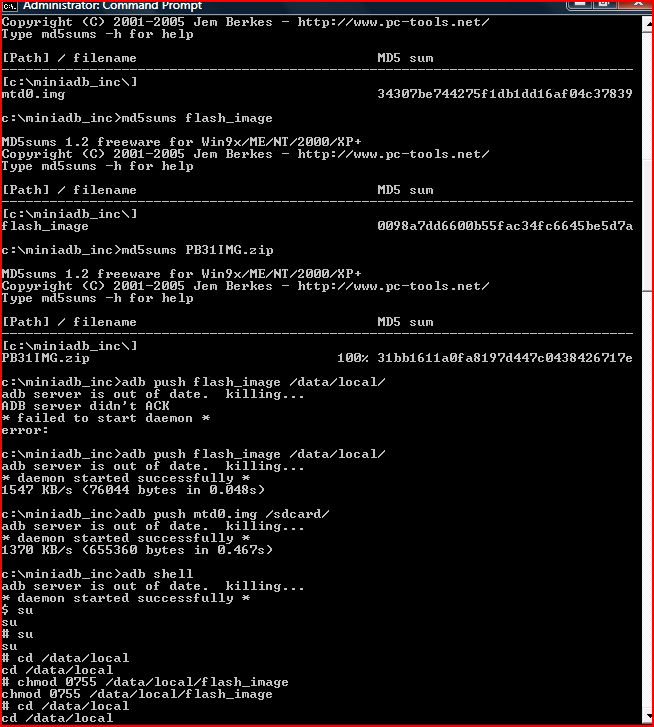

c:\miniadb_inc>md5sums mtd0.img
MD5sums 1.2 freeware for Win9x/ME/NT/2000/XP+
Copyright (C) 2001-2005 Jem Berkes - http://www.pc-tools.net/
Type md5sums -h for help
[Path] / filename MD5 sum
-------------------------------------------------------------------------------
[c:\miniadb_inc\]
mtd0.img 34307be744275f1db1dd16af04c37839
c:\miniadb_inc>md5sums flash_image
MD5sums 1.2 freeware for Win9x/ME/NT/2000/XP+
Copyright (C) 2001-2005 Jem Berkes - http://www.pc-tools.net/
Type md5sums -h for help
[Path] / filename MD5 sum
-------------------------------------------------------------------------------
[c:\miniadb_inc\]
flash_image 0098a7dd6600b55fac34fc6645be5d7a
c:\miniadb_inc>md5sums PB31IMG.zip
MD5sums 1.2 freeware for Win9x/ME/NT/2000/XP+
Copyright (C) 2001-2005 Jem Berkes - http://www.pc-tools.net/
Type md5sums -h for help
[Path] / filename MD5 sum
-------------------------------------------------------------------------------
[c:\miniadb_inc\]
PB31IMG.zip 100% 31bb1611a0fa8197d447c0438426717e
c:\miniadb_inc>adb push flash_image /data/local/
adb server is out of date. killing...
ADB server didn't ACK
* failed to start daemon *
error:
c:\miniadb_inc>adb push flash_image /data/local/
adb server is out of date. killing...
* daemon started successfully *
1547 KB/s (76044 bytes in 0.048s)
c:\miniadb_inc>adb push mtd0.img /sdcard/
adb server is out of date. killing...
* daemon started successfully *
1370 KB/s (655360 bytes in 0.467s)
c:\miniadb_inc>adb shell
adb server is out of date. killing...
* daemon started successfully *
$ su
su
# su
su
# cd /data/local
cd /data/local
# chmod 0755 /data/local/flash_image
chmod 0755 /data/local/flash_image
# cd /data/local
cd /data/local

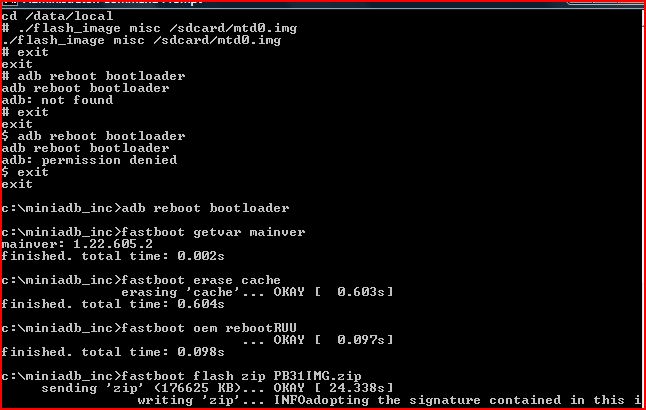

# ./flash_image misc /sdcard/mtd0.img
./flash_image misc /sdcard/mtd0.img
# exit
exit
# adb reboot bootloader
adb reboot bootloader
adb: not found
# exit
exit
$ adb reboot bootloader
adb reboot bootloader
adb: permission denied
$ exit
exit
c:\miniadb_inc>adb reboot bootloader
c:\miniadb_inc>fastboot getvar mainver
mainver: 1.22.605.2
finished. total time: 0.002s
c:\miniadb_inc>fastboot erase cache
erasing 'cache'... OKAY [ 0.603s]
finished. total time: 0.604s
c:\miniadb_inc>fastboot oem rebootRUU
... OKAY [ 0.097s]
finished. total time: 0.098s
c:\miniadb_inc>fastboot flash zip PB31IMG.zip
sending 'zip' (176625 KB)... OKAY [ 24.338s]

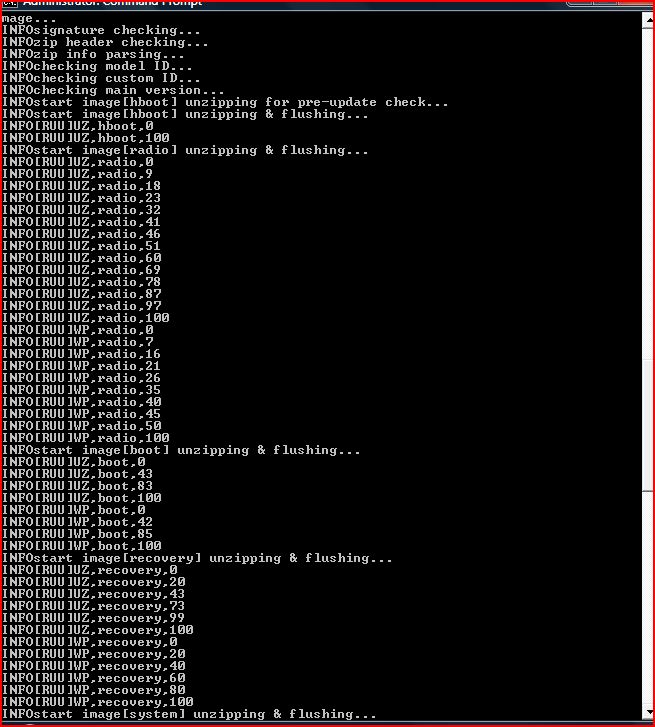

writing 'zip'... INFOadopting the signature contained in this
mage...
INFOsignature checking...
INFOzip header checking...
INFOzip info parsing...
INFOchecking model ID...
INFOchecking custom ID...
INFOchecking main version...
INFOstart image[hboot] unzipping for pre-update check...
INFOstart image[hboot] unzipping & flushing...
INFO[RUU]UZ,hboot,0
INFO[RUU]UZ,hboot,100
INFOstart image[radio] unzipping & flushing...
INFO[RUU]UZ,radio,0
INFO[RUU]UZ,radio,9
INFO[RUU]UZ,radio,18
INFO[RUU]UZ,radio,23
INFO[RUU]UZ,radio,32
INFO[RUU]UZ,radio,41
INFO[RUU]UZ,radio,46
INFO[RUU]UZ,radio,51
INFO[RUU]UZ,radio,60
INFO[RUU]UZ,radio,69
INFO[RUU]UZ,radio,78
INFO[RUU]UZ,radio,87
INFO[RUU]UZ,radio,97
INFO[RUU]UZ,radio,100
INFO[RUU]WP,radio,0
INFO[RUU]WP,radio,7
INFO[RUU]WP,radio,16
INFO[RUU]WP,radio,21
INFO[RUU]WP,radio,26
INFO[RUU]WP,radio,35
INFO[RUU]WP,radio,40
INFO[RUU]WP,radio,45
INFO[RUU]WP,radio,50
INFO[RUU]WP,radio,100
INFOstart image[boot] unzipping & flushing...
INFO[RUU]UZ,boot,0
INFO[RUU]UZ,boot,43
INFO[RUU]UZ,boot,83
INFO[RUU]UZ,boot,100
INFO[RUU]WP,boot,0
INFO[RUU]WP,boot,42
INFO[RUU]WP,boot,85
INFO[RUU]WP,boot,100
INFOstart image[recovery] unzipping & flushing...
INFO[RUU]UZ,recovery,0
INFO[RUU]UZ,recovery,20
INFO[RUU]UZ,recovery,43
INFO[RUU]UZ,recovery,73
INFO[RUU]UZ,recovery,99
INFO[RUU]UZ,recovery,100
INFO[RUU]WP,recovery,0
INFO[RUU]WP,recovery,20
INFO[RUU]WP,recovery,40
INFO[RUU]WP,recovery,60
INFO[RUU]WP,recovery,80
INFO[RUU]WP,recovery,100
INFOstart image[system] unzipping & flushing...
INFO[RUU]UZ,system,0
INFO[RUU]UZ,system,6
INFO[RUU]UZ,system,12
INFO[RUU]UZ,system,19
INFO[RUU]UZ,system,25
INFO[RUU]UZ,system,32
INFO[RUU]UZ,system,39
INFO[RUU]UZ,system,45
INFO[RUU]UZ,system,51
INFO[RUU]UZ,system,58
INFO[RUU]UZ,system,64
INFO[RUU]UZ,system,71
INFO[RUU]UZ,system,78
INFO[RUU]UZ,system,84
INFO[RUU]UZ,system,89
INFO[RUU]WP,system,0
INFO[RUU]WP,system,89
INFO[RUU]UZ,system,89
INFO[RUU]UZ,system,89
INFO[RUU]UZ,system,90
INFO[RUU]UZ,system,91
INFO[RUU]UZ,system,92
INFO[RUU]UZ,system,93
INFO[RUU]UZ,system,94
INFO[RUU]UZ,system,94
INFO[RUU]UZ,system,96
INFO[RUU]UZ,system,96
INFO[RUU]UZ,system,97
INFO[RUU]UZ,system,98
INFO[RUU]UZ,system,99
INFO[RUU]UZ,system,100
INFO[RUU]WP,system,89
INFO[RUU]WP,system,89
INFO[RUU]WP,system,90
INFO[RUU]WP,system,91
INFO[RUU]WP,system,92
INFO[RUU]WP,system,93
INFO[RUU]WP,system,94
INFO[RUU]WP,system,94
INFO[RUU]WP,system,95
INFO[RUU]WP,system,96
INFO[RUU]WP,system,97
INFO[RUU]WP,system,98
INFO[RUU]WP,system,99
INFO[RUU]WP,system,100
INFOstart image[sp1] unzipping & flushing...
INFO[RUU]UZ,sp1,0
INFO[RUU]UZ,sp1,100
INFO[RUU]WP,sp1,0
INFO[RUU]WP,sp1,100
OKAY [151.700s]
finished. total time: 176.040s
c:\miniadb_inc>fastboot reboot
rebooting...
finished. total time: 0.097s
c:\miniadb_inc>
Attachments
scotty85
Extreme Android User
that happens on occasion,i believe everyone whose encountered it,a simple factory reset in hboot fixed the issue. in a worse case scenario,all youd need to do is run the downgrade PB31IMG a second time
youre almost there!
MonsterMike
Newbie
when i power it up normally it goes to the same thing. and tried to wipe data/factory reset and still nothing. Im downloading the second link u posted, but the first one poped up with nothing and said Error in query. and how do i know if my sd card is Fat32 formatted? and how do i flash it? just by running it?
that happens on occasion,i believe everyone whose encountered it,a simple factory reset in hboot fixed the issue. in a worse case scenario,all youd need to do is run the downgrade PB31IMG a second time
youre almost there!
you the man! that worked and now im unlocked with s-off!! i cant thank you enough!! now how do i go about getting back to GB and uninstall all the verizon bloatware..?
scotty85
Extreme Android User
that happens on occasion,i believe everyone whose encountered it,a simple factory reset in hboot fixed the issue. in a worse case scenario,all youd need to do is run the downgrade PB31IMG a second time
youre almost there!
that happens on occasion,i believe everyone whose encountered it,a simple factory reset in hboot fixed the issue. in a worse case scenario,all youd need to do is run the downgrade PB31IMG a second time
youre almost there!
yep that worked perfect and now im unlocked with s-off!! cant thank you enough scotty85..
so how do i now go about getting back to gb and getting rid of all the verizon bw
scotty85
Extreme Android User
awsome! glad it worked out for you.
to get back to GB you can:
1)install a GB based rom(one is linked somewhere in the last couple pages)
2)restore your stock backup
3)run a full ruu.
you caN Remove bloat with titanium backup,my backup pro,or other apps available from the market. just make backups along the way in case you delete somethign you shouldnt.
titanium backup pro has the option to freeze apps prior to deleting them. handy for making sure the stuff you want to eliminate does not affect something else.
MonsterMike
Newbie
im confused on what i need to do? how do i get the roms i need, and how to put them on phone, and how would i flash it? just by installing from sdcard?
my phone is now asking for an ota update of 4.08.605.2 is this Gb? id rather not download it if it is verizon based.should i install it, or just ignore it and flash another stable rom? if you have a specific rom in mind for the average person that is stable please let me know.
also i would like to stop the ota updates. how do i go about doing this?
scotty85
Extreme Android User
easiest thing to do is put the sd in a card reader and plug it in to the PC. right click,then click properties. if its plain FAT,or anythng other than FAT32,youll need to back it up and do a full format to FAT32.
then transfer the file(renamed in windows to PB31IMG) to the sd card,not inside any folders,and properly eject it from the PC. re insert it into the phone
hold vold down,then power,hold them both until you see hboot. wait for the green writing to flash,then it should find the file and ask you to update.
you just need to do the above,and get it back to a working phone. then you can do some research on your other questions, there is alot of info on the forum about flashing roms,etc. thats a little beyond the scope of this guide(wich is really just intended to help you achieve s-off)
somewhere in the last couple pages,sdraw posted a link on how to flash roms. ill see if i can find it.
once youre comfortable,you can reinstall a recovery,and either root,or install a rom using this guide
if youve got clockwork installed,you cannot install the OTA. your best bet is to restore a backup of 4.08.605.15,or install a rom based on it,or install a custom rom like cm7 or cm9. OTA nags will then be a thing of the past.
sdraw linked a stock rom somewhere in the last couple pages. beyond that,i honestly have no idea... its been long time since my inc has been my daily driver so im pretty out of touch with available roms.
scotty85
Extreme Android User
here you go(cuortesy of sdrawcab25):
stock rom:
http://forum.xda-developers.com/showthread.php?t=1737398
flashing roms:
http://androidforums.com/incredible-all-things-root/521423-how-flash-roms.html
stock rom:
http://forum.xda-developers.com/showthread.php?t=1737398
flashing roms:
http://androidforums.com/incredible-all-things-root/521423-how-flash-roms.html
MonsterMike
Newbie
i tried doing what u said to the t. formatted the sd to FAT32 then downloaded the rom u posted and renamed it PB31IMG an put it on the root. and when i held down the power and vol down key it booted up and started loading a blue bar on the side of the screen, once it finish it didnt promt me to do anything just had the normal selections again. i tried going into recovery and try installing it from there and it said E: cant open /sdcard/PB31IMG.zip (bad) so is there something im doing wrong?
ok, i think i have made up my mind on which rom to run. i have decided on cyanogen 7.2 and i have a couple of questions.
1-can i flash this on the downgraded rooted s-off froyo that i flashed from this thread, or do i need to get to gb first?
2- i have downloaded the cm7.2 and google apps, is there anything else i need to download before or after to make this a fully functioning phone?
thanks
1-can i flash this on the downgraded rooted s-off froyo that i flashed from this thread, or do i need to get to gb first?
2- i have downloaded the cm7.2 and google apps, is there anything else i need to download before or after to make this a fully functioning phone?
thanks
scotty85
Extreme Android User
wich file,specifically did you download? you got that error when trying to flash it in recovery,becasue recovery cannot flash it
you can flash it over froyo. i would prolly reccomend installing the newer radio and hboot,but you dont need to run the full gb ruu.
nope
MonsterMike
Newbie
i downloaded the RUU file u posted on this link: Shipped ROMs is a .zip file that you rename to PB31IMG
