Just purchased these this morning.
Given that my wife and my sister in law all have this product (for their evo 4g's), i don't think there will be much of an issue.
3 batteries, even at 1500 mAh for 13 bucks is more than reasonable.
I'll let you folks know how it goes.
Definitely report back if they're the correct battery replacements though. Some had reported that BH6X and BH5X did not fit in the MoPho.
Here you go.
The package is bought on ebay and it comes from China.

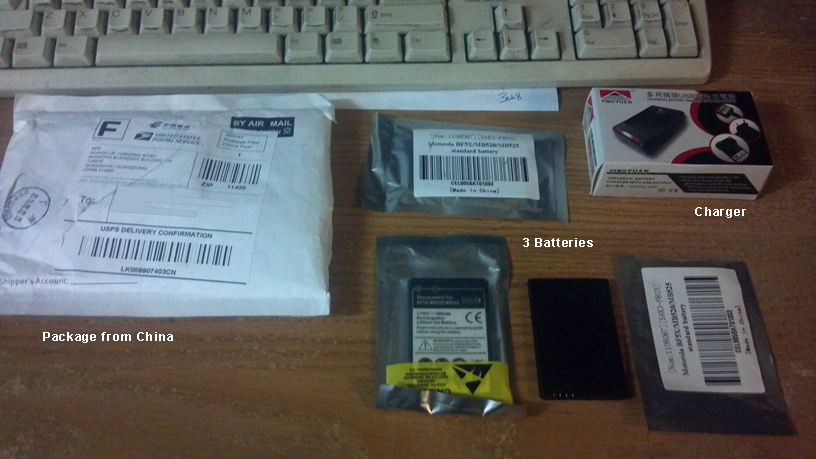

Here you see the package, the 3 included batteries and the charger box.

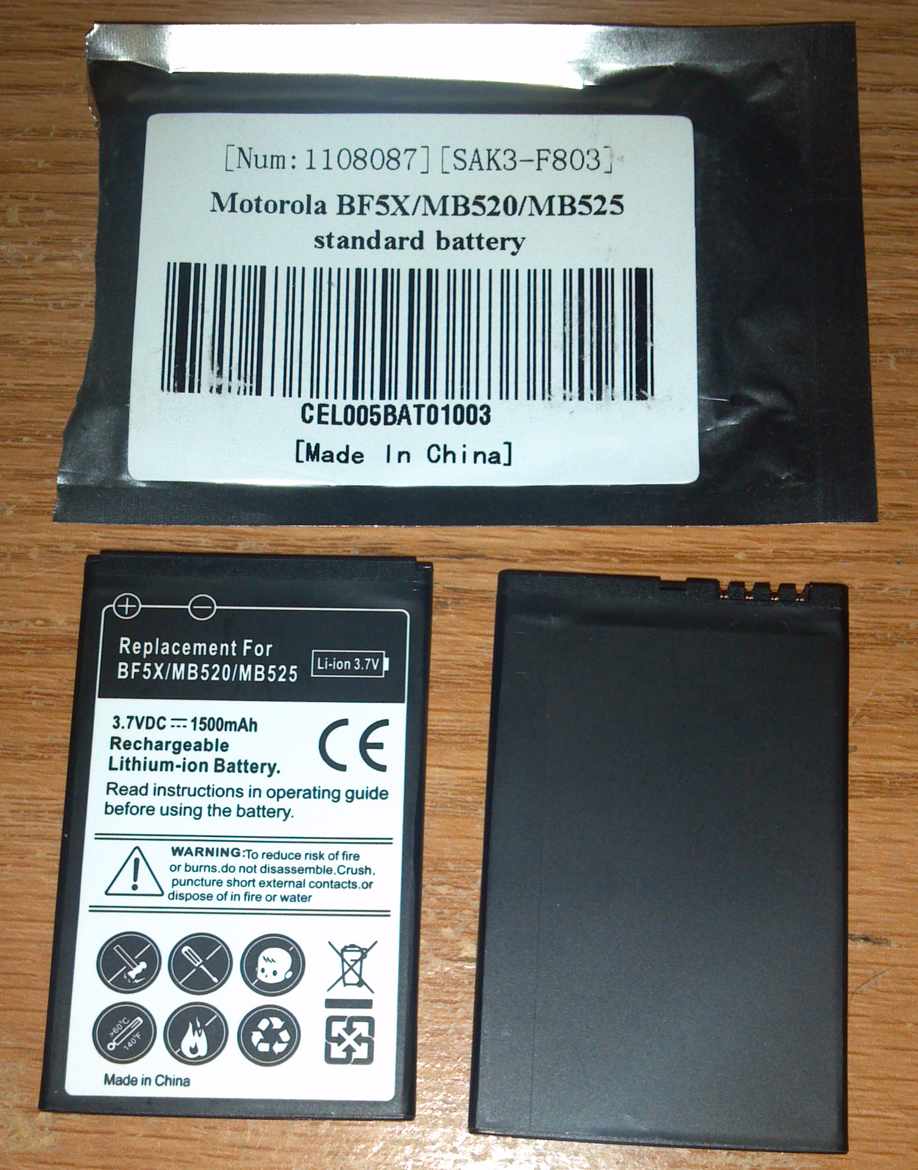

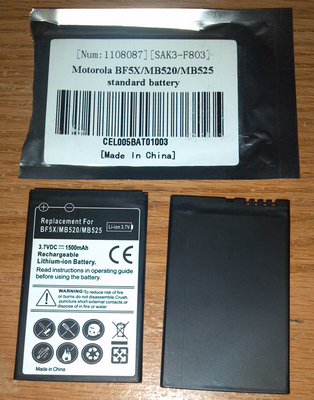

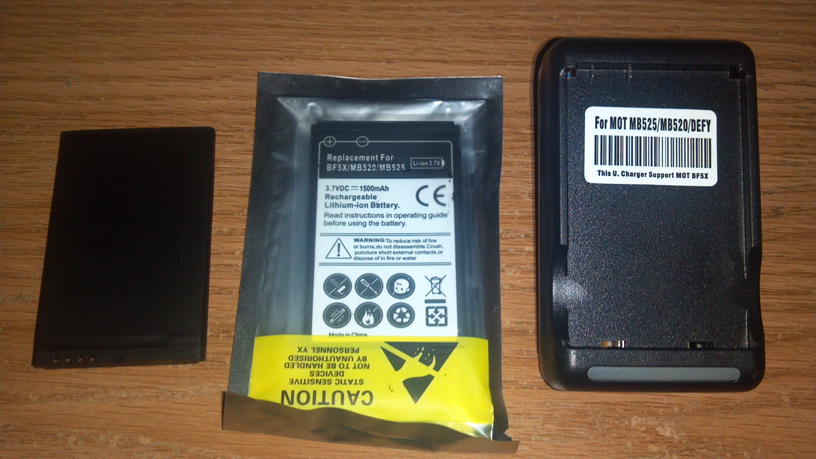

Next we have images of the battery in its protective pouch and the battery charger.
Each battery is a 3.7VDC 1500mAh Rechargable Lithium-ion type of battery.
It states as a replacement for the BF5X/MB520/MB525 battery. But I can rest assure that it does fit the Photon.

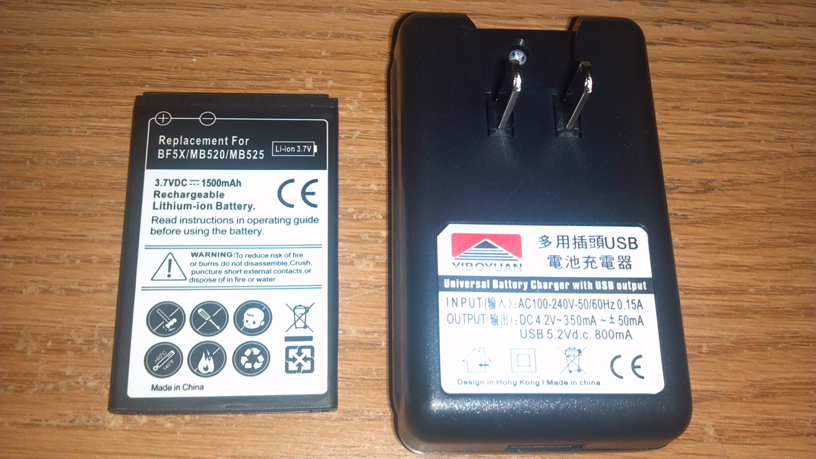

Another view of the battery and charger.

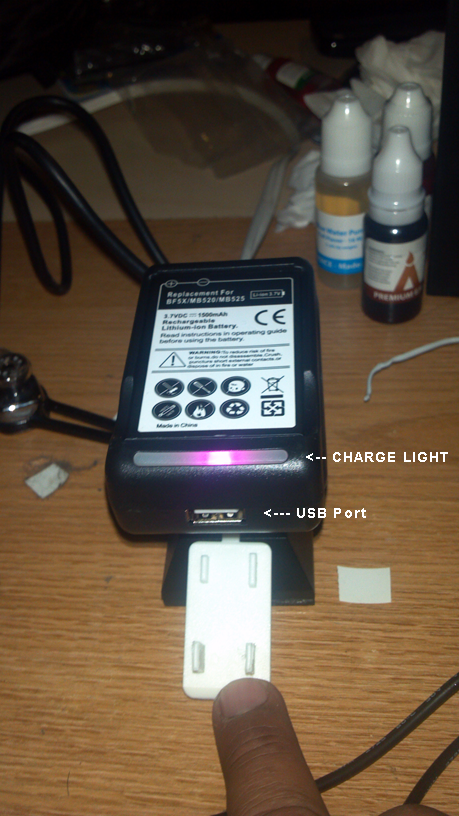

The charger has retractable prongs to connect to the wall and it also has a usb port which I guess is to connect another device to charge from (like the Photon connected via a usb cable.) There is a nicely soft glow light that is colored red (more like magenta) when the battery needs charging and turns a nice color green when the battery is fully charged. Supposedly the charger box indicates that the charging stops once the battery is full to prevent overcharging, but I have no way of knowing that without a battery tester of some sort.

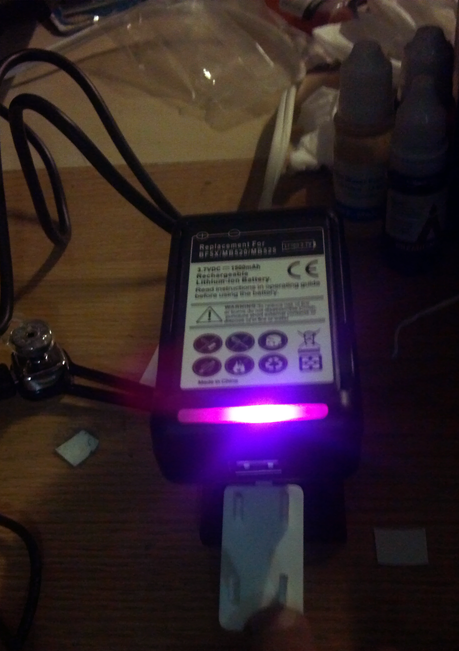

Here is the view of the light with a pic without flash on.
As I was testing this product, the supplied batteries get charged in about an hour each. Originally, I just inserted one of the batteries into the photon to see if it fit and worked and yes it does fit and charge the phone. But it quickly died since I didn't have it fully charged. Well after a few hours of charging all three batteries, I inserted one of them into the photon and see how long they last. I'll get back to that after the break.
as for the USB port on the charger, well it does not provide any juice to the Photon via a usb cable. At first I thought it was my cable (previous HTC EVO cable) so I switched it to the official one from Motorola and nothing, zip nada.
At this point, I thought either I had a charging device that had a defective usb port or the port doesn't work at all. So I decided to do one last final test and plug in my

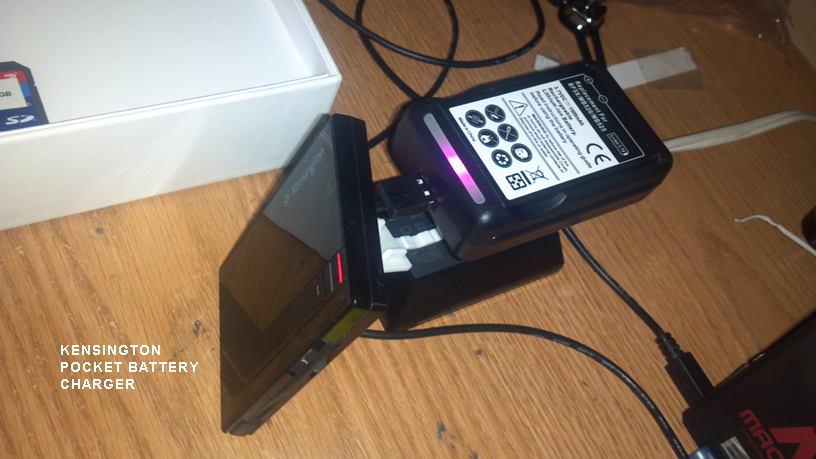

Kensington Pocket Battery for Smartphones device (which I highly recommend by the way) into the usb port of the charger and tada, we have power. It charges the Kensington battery pack. But not the Photon via the usb.
Now going back to the battery in the photon, while not as long lasting as the official Motorola HF5X 3.8v 1650mAh battery, it does keep the Photon working long enough for me and until I am able to reach a charging port on long travels outside. And with 3 of them, I really do not have to worry. (So long as they all are charged fully). lol
Overall for the price, $12.90 I really can't complain. True the USB charge port only works for my Kensington but it does charge the 3 supplied batteries as well as the official Motorola one. Small, compact and good for travel.
TS out
