iowabowtech
root@android:/ #

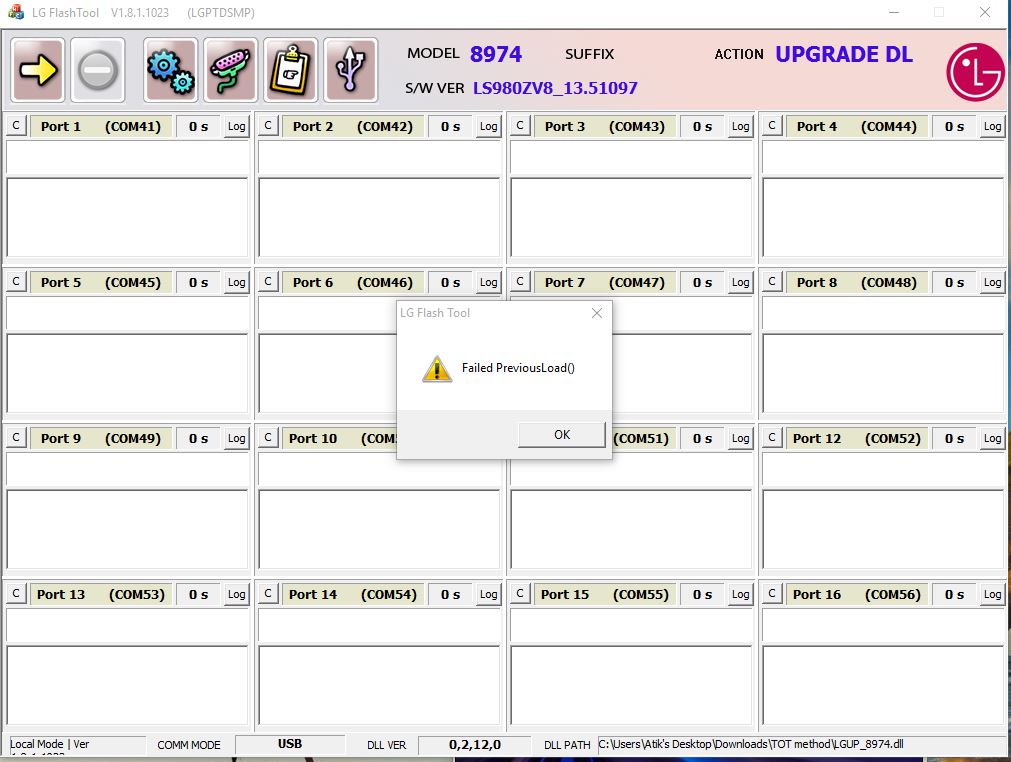

using the LGUP_8974.dll and hexedit the .tot of LS980 to D802 i got thisView attachment 96684
In that instance, you may need to close flash tools entirely, then reopen from scratch and retry.
iowabowtech
root@android:/ #
Try both. The nice thing about flash tools is there are built in safeties. You aren't going to hurt anything, it'll just work or it won't. Since you hexedited to d802, it may want the d802 dll.
iowabowtech
root@android:/ #
The thing that's interesting to me is that when you first started, you were using an unedited LS980 tot with the LS980 dll correct? That combination should either work, or it should throw a "wrong model" error if it thinks it's a D802. Instead, in the very first picture you posted in this thread, the model says it's an 8974. That is strange. Are you sure you were using the LS980 tot and standard LS980 dll back then?
iowabowtech
root@android:/ #
You flashed the D802 tot eh? Did it flash entirely? That's not a great thing but I would assume it flashed since the device thinks its a D802. Hopefully you can long press power for 15 seconds to turn off entirely. Then try download mode. I doubt it will, but maybe you'll get fastboot mode if you're lucky. Otherwise you may have been forced into bulk 9006 or QDLoader 9008 potentially.
Or its actually running as a D802 but typically the screen touches will be very glitchy if it does boot into the OS.
iowabowtech
root@android:/ #
94% on the flash tools window or on the phones screen? Regardless, if it made it that far, it likely flashed most or all of the D802 partitions I'd guess.
atik
Newbie
i flashed D80220c.kdz just now by using LG flash tools 2014,display is back...but some stripes are visible in screen. moreover with no touch,no network,no imei,no baseband again like before... i can use mouse with otg
download mode is working,but no bootloader or fastboot.
how to enable fastboot?
and is there any permanent solution to get my touch back???
download mode is working,but no bootloader or fastboot.
how to enable fastboot?
and is there any permanent solution to get my touch back???
atik
Newbie
on flash tool..but as i again flashed with .kdz is it any good?
iowabowtech
root@android:/ #
So yeah that's the expected result of the D802 firmware on your LS980. Does download mode work now or no? If not, you'd have to root the device. Then you could use dd commands in an adb root shell to write the LS980 bootstack partitions to the phone, fixing download mode. Then you're basically back to where you were before.
iowabowtech
root@android:/ #
The only idea I have is to again try the LS980 tot which will almost certainly have to be hexedited to D802. And then try to find a 8974_dll that bypasses the cross dll error.
Feel free to post a pic of the hexeditor. I'm sure you're changing the right string but wouldn't hurt to get 2 sets of eyes on that.
iowabowtech
root@android:/ #

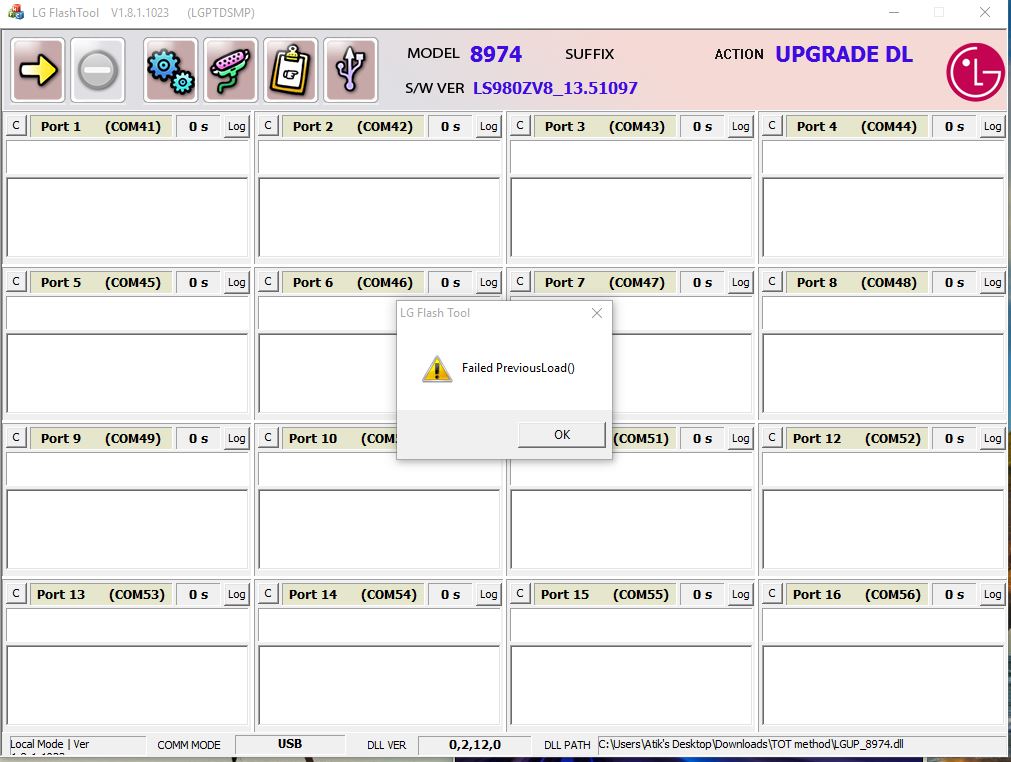

See how the model says 8794 in your screenshot above? That is not correct. I wonder what's causing that?after fresh editing .tot and usin LGUp_8974.dll i got these
hex editorView attachment 96769 View attachment 96770
In the hexeditor screenshot...is that the first instance of the model that you're changing? So if you search for 980 that's the first instance of 980 that is found? It doesn't look quite right, usually there's more info surrounding the model and its immediately followed by s/w version.
iowabowtech
root@android:/ #
Ok so I've been holding an idea back for awhile now thinking we could get there an easier way but I'm not seeing that happening. So here goes, this is going to be painful for you I'm afraid...
Reflash the old, early JB d802 firmware back to the phone via lg flash tools. Yep, that's going to screw up the touch screen again so you're going to have to use your usb mouse idea and painstakingly do the next steps. Root the phone. Install TWRP recovery. I think you'd want to actually install the early Sprint TWRP since that would match your motherboard. Next go to XDA and find a really old JB custom rom in the Sprint LG G2 section. You're looking for a custom rom that is just plain old rooted stock with no other changes or minimal other changes if possible. Flashing that should set the model number and s/w version to all Sprint which will then allow you to plug the phone into LG Flash Tools and use the regular LS980 tot and regular LS980 dll to fix without any errors.
Good luck.
Reflash the old, early JB d802 firmware back to the phone via lg flash tools. Yep, that's going to screw up the touch screen again so you're going to have to use your usb mouse idea and painstakingly do the next steps. Root the phone. Install TWRP recovery. I think you'd want to actually install the early Sprint TWRP since that would match your motherboard. Next go to XDA and find a really old JB custom rom in the Sprint LG G2 section. You're looking for a custom rom that is just plain old rooted stock with no other changes or minimal other changes if possible. Flashing that should set the model number and s/w version to all Sprint which will then allow you to plug the phone into LG Flash Tools and use the regular LS980 tot and regular LS980 dll to fix without any errors.
Good luck.
iowabowtech
root@android:/ #
For older JB firmwares, if I remember right those need TWRP version 2.7.0 or earlier so I would use the 2.7.0 version:
https://dl.twrp.me/g2spr/
So if your D802 firmware is JB, I think you can use Towelroot for easy root or maybe even Stumproot. Should be pretty straightforward.
atik
Newbie
i have been able to flash with 8794 dll and hexedited .tot...94% then showed this
now my phone stuck at LG logo...PS: download mode is also at the icon of it...not opening
Last edited:
atik
Newbie
Thanks every one for reading my post.Here is what happened to me:
1. I bought a LG G2 D802 32GB from a indivisual buyer
2. Touch was glitchy after some day,so i tried to flash a stock rom D80220c.kdz
3. After flash my touch gone totally
4. After googling a lot i heard it might be refurbished,so i opened the motherboard and found it is LS980 (so it was actually refurbished)
5.Then i tried to flash it with a LS980.tot hex edited to D802 and LS8974.dll with LG flash tool 2014 in WIN 10 OS
6. It stuck at 94% and got USB port open fail
7. Now when i open the phone, it stucks at LG Logo
8. I can't access to any mode(download/fastboot/recovery/bootloader)
9. At adb, my pc don't recognize the phone while connected with USB, LG mobile support tool also not recognize it
What can i do???
1. I bought a LG G2 D802 32GB from a indivisual buyer
2. Touch was glitchy after some day,so i tried to flash a stock rom D80220c.kdz
3. After flash my touch gone totally
4. After googling a lot i heard it might be refurbished,so i opened the motherboard and found it is LS980 (so it was actually refurbished)
5.Then i tried to flash it with a LS980.tot hex edited to D802 and LS8974.dll with LG flash tool 2014 in WIN 10 OS
6. It stuck at 94% and got USB port open fail
7. Now when i open the phone, it stucks at LG Logo
8. I can't access to any mode(download/fastboot/recovery/bootloader)
9. At adb, my pc don't recognize the phone while connected with USB, LG mobile support tool also not recognize it
What can i do???
