Help HARD BRICK LG G2 qhsusb_bulk, but no partitions detected.

Hello hakim31,
I bricked my LG G2 32GB three days ago (Qualcomm HS-... 9008)
I succeeded with BoardDiag3.99c (with a 16gb tot file) then download mode + LGUP with a V30D Kdz file.
Now, my phone works fine with stock Lollipop 32 GB
Best regards

Help hard brick, i formatted my internal storage lg d325f msm8210. only black screen and in Windows its detected qualcomm hs-usb qdloader 9008. What should i do? Please help, my phone was dead for 2 weeks.:(:(

@iowabowtech Hi, I have an G2 D802 International 16GB model, I bricked it when I try to install Cyanogen 13. When I plug usb LG logo appears and dissappear, black screen, no download mode etc. When I dig xda, I find 9006 and 9008 issue. I shortcut cap and now I can make my phone either 9006 and 9008 mode. I put my phone Qualcomm hs-usb 9008 and then try to Ap emmc check. The problem is, when I try to check AP & EMMC, it fails and said "No dload mode ...". When I try to plug my phone to linux (ubuntu), the 36 partitions are apperas and disappears. What do you suggest me in this situation?

loremipsum8 said:
@iowabowtech Hi, I have an G2 D802 International 16GB model, I bricked it when I try to install Cyanogen 13. When I plug usb LG logo appears and dissappear, black screen, no download mode etc. When I dig xda, I find 9006 and 9008 issue. I shortcut cap and now I can make my phone either 9006 and 9008 mode. I put my phone Qualcomm hs-usb 9008 and then try to Ap emmc check. The problem is, when I try to check AP & EMMC, it fails and said "No dload mode ...". When I try to plug my phone to linux (ubuntu), the 36 partitions are apperas and disappears. What do you suggest me in this situation?
Click to expand...
bro just msg me on my whatsapp no +917744894155 i will solve ur issue through teamviewer.

iowabowtech said:
There is 9006 mode (classic bulk where the partitions should show up as "drives" in windows) and there is 9008 mode (QDLoader). Sometimes 9008 shows up falsely as bulk mode in Windows depending on the drivers that are installed. Go ahead and install these drivers..

https://www.dropbox.com/s/3hovx8h7nauy7e6/Qcomm_Drivers.zip?dl=0

Then recheck how the phone shows up in device manager. The device description should now be more specific and will show if you have 9006 or 9008.
Click to expand...
HEY ...
I have lg g2 F320K model
i have no idea how to remove the button part in this device to short the ic to do the qhsusb_bulk 9006 using srk tool.. please help me

Sir
Ihave LG G2. when it is on android 4.4.2 kitkat it shows d802 in about phone. i flashed it with d80230b.kdz but after flashing toouch not works properly and baseband/imei are NULL. then i search on google some one say that check your mainboard and then flash with that board file. i checked my board and it is d801. then i flashed it with d80110G.kdz file. now my phone is stuck on lg logo, no download mode, no recovery. when try download mode fast boot mode started. when i short a capacitor it shows Qualcomm HS-USB QDloader 9008, but no partition n the phone still in blank screen.

Please give me some solution

bazaid said:
Sir
Ihave LG G2. when it is on android 4.4.2 kitkat it shows d802 in about phone. i flashed it with d80230b.kdz but after flashing toouch not works properly and baseband/imei are NULL. then i search on google some one say that check your mainboard and then flash with that board file. i checked my board and it is d801. then i flashed it with d80110G.kdz file. now my phone is stuck on lg logo, no download mode, no recovery. when try download mode fast boot mode started. when i short a capacitor it shows Qualcomm HS-USB QDloader 9008, but no partition n the phone still in blank screen.

Please give me some solution
Click to expand...

Follow this:
http://forum.xda-developers.com/lg-g2/general/fix-unbrick-lg-g2-stuck-qualcomm-hs-usb-t2933830

Here's the tool you need instead of the one posted in that thread:
https://mega.nz/#!pZQyXbAD!960ZDwH36ZwqY2C7CoiDdfgxCRodU2VPFMaAGkobtCc

You'll need the D801 tot also. It can be found with a search. Any D801 tot will work, regardless of age.

Nobody should ever pay anyone to fix their G2. If somebody offers to fix yours for free via WhatsApp or some other means then great - good on them for helping. If they're looking for money, please realize, they're simply using Qualcomm's proprietary mbn's and LG's proprietary firmware to fix your device. These have been readily available for the G2, G3 and several other devices containing a Qualcomm SoC for some time now.

iowabowtech said:
Nobody should ever pay anyone to fix their G2. If somebody offers to fix yours for free via WhatsApp or some other means then great - good on them for helping. If they're looking for money, please realize, they're simply using Qualcomm's proprietary mbn's and LG's proprietary firmware to fix your device. These have been readily available for the G2, G3 and several other devices containing a Qualcomm SoC for some time now.
Click to expand...
Hello Sir
i am facing a new problem i bought a lg g3 which main board is LS990 and the software version in cell is d85510n android 4.4.2 kitkat rooted. The problem i am facing is that when i ON my data connection its not showing no sign of H or E and the mobile network state is disconnected. calls and messaging is ok wifi is ok only have issue with data. what can i do for this.
I am downloading ls990zv8.tot 5.0.2 lollipop. can i flash this phone with that file.

Last edited:
Hi, i have a T-mobile LG G Pad F type v496 in 9008 mode. I've spent hours researching and working to try and fix it but have come up short. If anyone has the MBN and can help me fix it, I would be grateful.

Thanks!

ohcafe02 said:
HELLO...iowabowtech
I'm in the same situation.

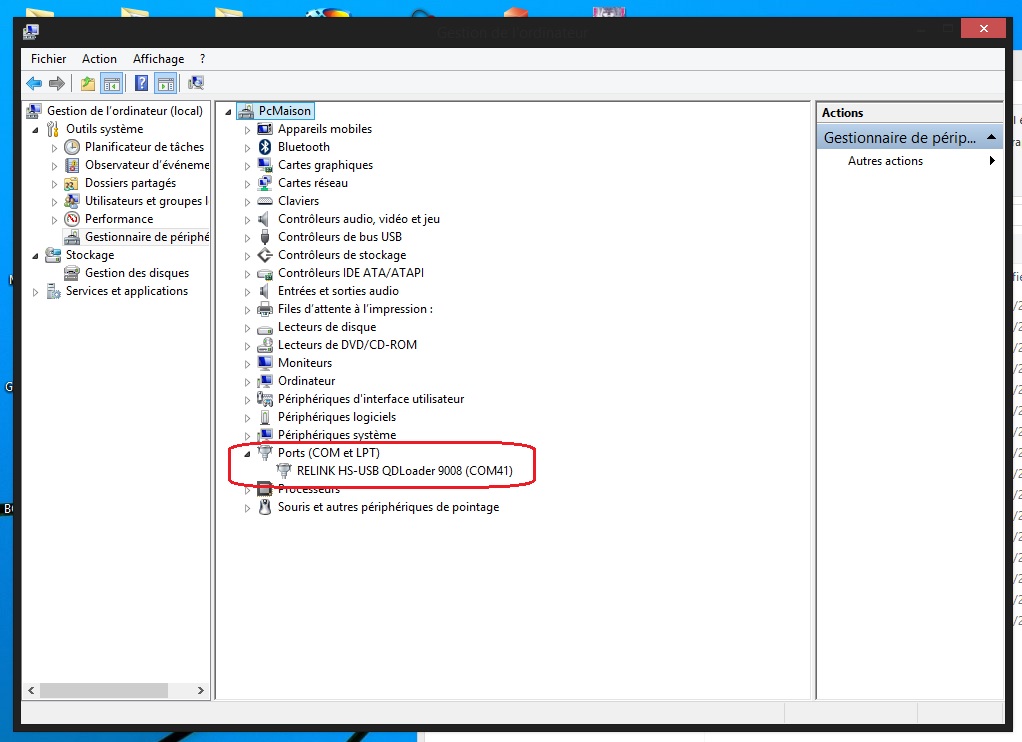

My PC detected Qloader 9008(via port 3 but I had chang to port41).
My model is LG G2 D802/32gb.
No drive found.No partition.No light on charging.Black Screen.
I tried so many methods but nothing work.
When use BoardDiag3.99c it shown <Device dload mode, device was not found in dload trying flash programmer>
I'm hopeless:(.
Please guiding me what can I do to recover it.
(Apologize to my bad English)
Click to expand...

i have same issue :(
Have you solved the problem ???
Sir iowabowtech Please help

iowabowtech said:
The reason for opening the phone in his case was to verify that it's a genuine D802 and not a refurb with mismatching motherboard. I'm aware of the tool to fix as I've had it since before it was publicly released. But we don't want to go flashing the wrong model's partitions. ;)
Click to expand...

Sir my phone is D802 but internal written D800 and on ic written D801 !!!
so how can i will recognize my phone's model ??? plz

Zebesh said:
Sir my phone is D802 but internal written D800 and on ic written D801 !!!
so how can i will recognize my phone's model ??? plz
Click to expand...

Use the model stamped on the rear of the motherboard. When you use the boarddiag tool, use the tot for the model stamped on the motherboard. Then flash all the individual partitions with that tool. It says "restore boot" as the default option but if you use the dropdown, you can restore all the partitions if you've already selected a tot as your target file.

iowabowtech said:
Use the model stamped on the rear of the motherboard. When you use the boarddiag tool, use the tot for the model stamped on the motherboard. Then flash all the individual partitions with that tool. It says "restore boot" as the default option but if you use the dropdown, you can restore all the partitions if you've already selected a tot as your target file.
Click to expand...

Sir thanks for reply :)

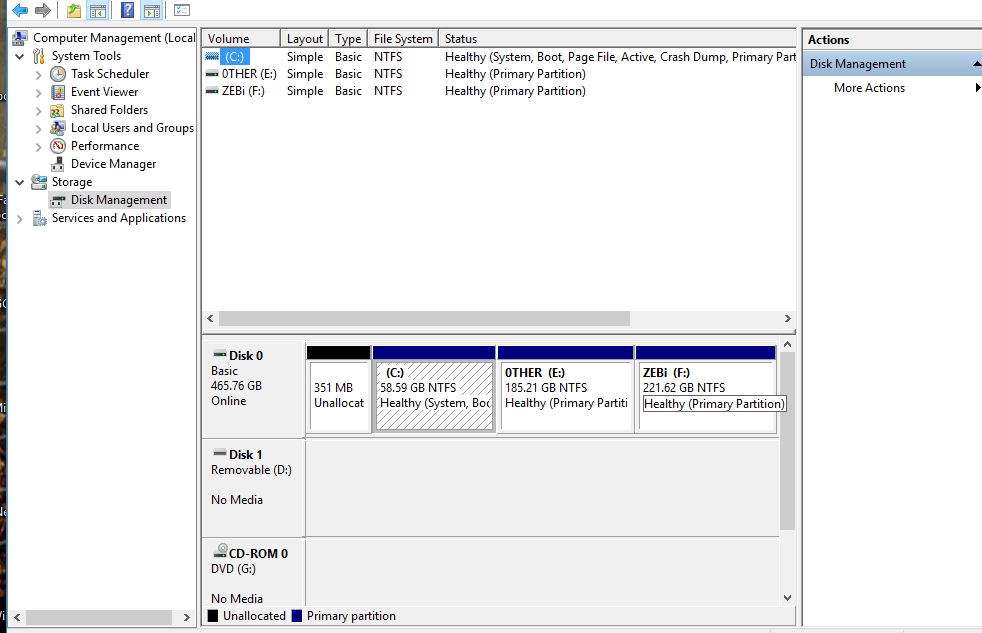

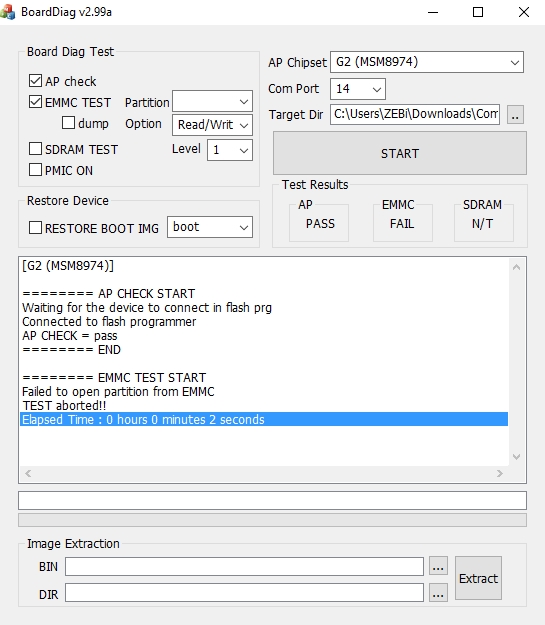

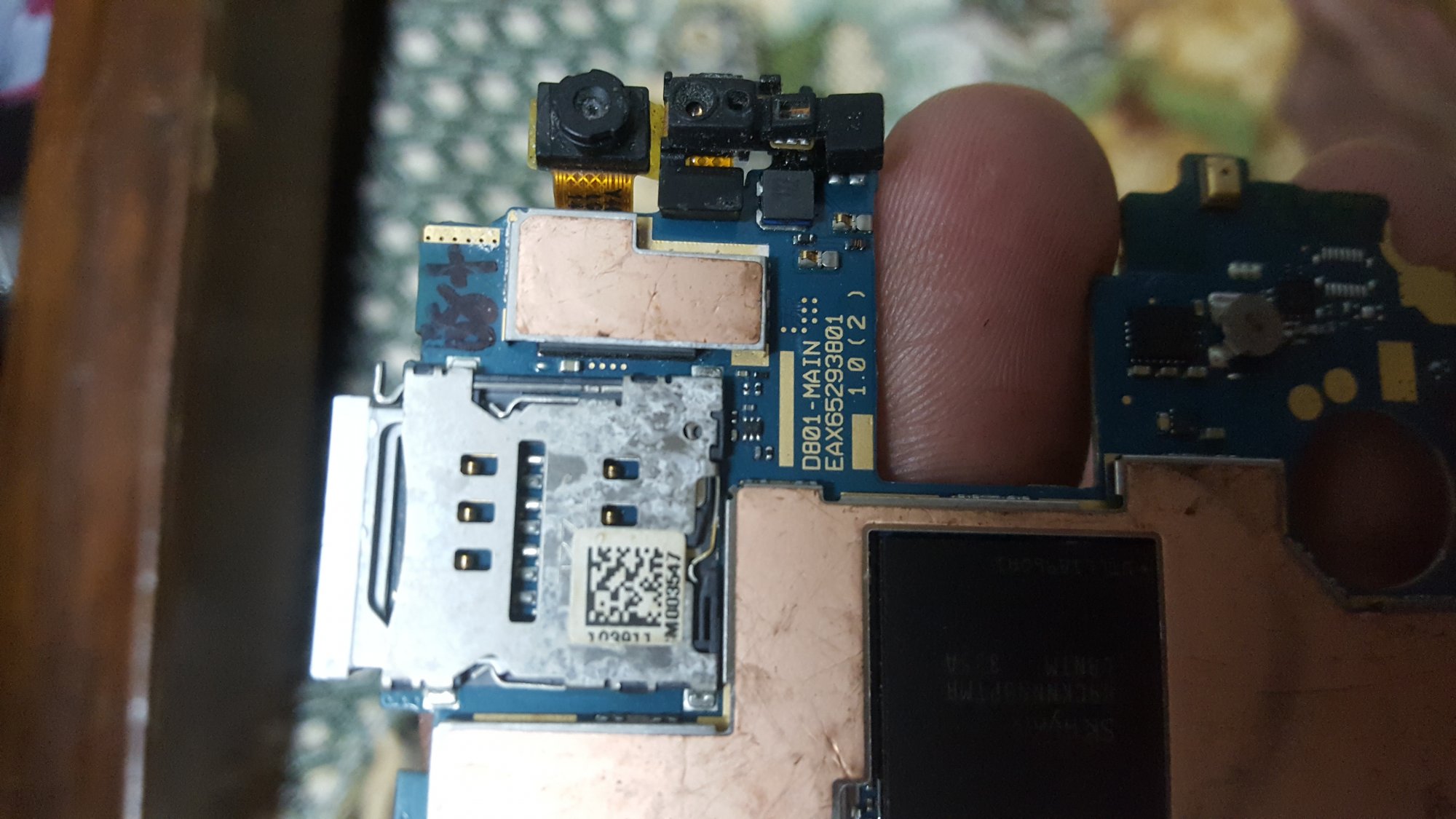

Sir it is D801 written on a board see picture sir i have downloaded tot files and extraction has been done on boarddiag v2.99a now when i tick on AP check and EMMC Test it gives me error emmc partition fail see picture.One thing more sir i have no partition show in computer management see picture

You can try flashing the img's from a d801 tot but it may not work. The emmc test failure could mean its corrupt or damaged. If that's the case you would be unable to continue.

iowabowtech said:
You can try flashing the img's from a d801 tot but it may not work. The emmc test failure could mean its corrupt or damaged. If that's the case you would be unable to continue.
Click to expand...

Sir Thanks for instant reply you are sach a great 👍 :) :)

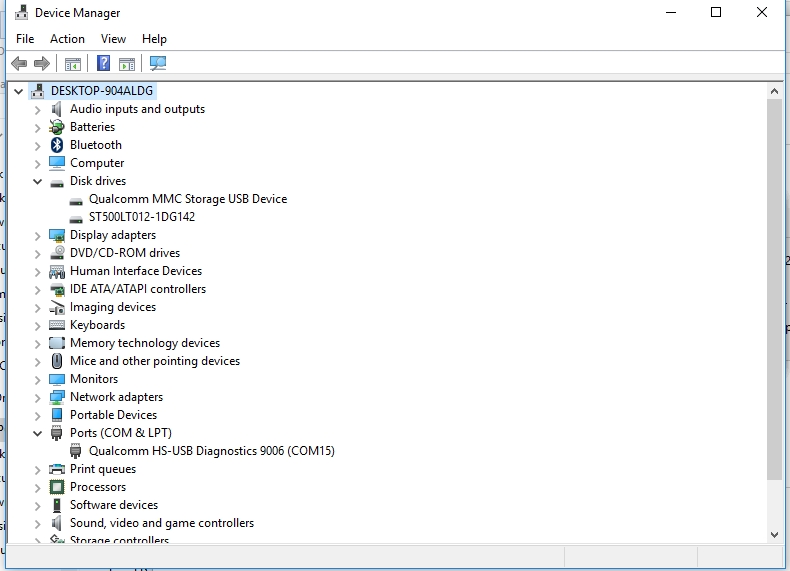

Sir i have remove 2 capacitors and short with tweezer now it is in 9006(com15)
disk drive partitions also found now what will be the next step ???



Partition Photo See >>>
