Root [TWRP] [MS323, D320n, D325] Team Win Recovery Pro 3.0

Paul pinckston said:
I found it in /data/data/com.buak.link2sd/files. I presume it mounts after boot, I did a boot logcat and couldn't find anything related to mount sdext2. Also, I know on cyanogen that it tries to mount sd-ext automatically so link2sd conflicts. Could be the same on paranoid. There's a fix if you Google it.
Click to expand...

Thanks for the fast reply. I checked the script file, seemed to be right. Dont know why it didn't mount. If it isn't at boot when it gets executed? Also how do I view the logcat at boot time? Anyway I installed the latest link2sd version and now it works fine. I'm gettind started with android and want to lern everithing about it, so any comments help me a lot. Please excuse my poor english.

__bionic_open_tzdata: couldn't find any tzdata when looking for localtime!
__bionic_open_tzdata: couldn't find any tzdata when looking for GMT!
__bionic_open_tzdata: couldn't find any tzdata when looking for posixrules!
Starting TWRP 2.8.7.0 on Sat Mar 21 07:55:04 1970
(pid 192)
RECOVERY_SDCARD_ON_DATA := true
I:Lun file '/sys/devices/platform/msm_hsusb/gadget/lun0/file'
I:TW_BRIGHTNESS_PATH := /sys/class/leds/lcd-backlight/brightness
I:Found brightness file at '/sys/class/leds/lcd-backlight/brightness'
I:TWFunc::Set_Brightness: Setting brightness control to 255
Starting the UI...Pixel format: 480x800 @ 32bpp
Pixel format: RGBX_8888
Not using qualcomm overlay, 'mdssfb_80000'
framebuffer: fd 4 (480 x 800)
=> Linking mtab
Renaming regular /etc/recovery.fstab -> /etc/recovery.fstab.bak
Moving /etc/twrp.fstab -> /etc/recovery.fstab
=> Processing recovery.fstab
I:Processing '/data'
I:Setting up '/data' as data/media emulated storage.
I:Created '/emmc' folder.
I:mount -o bind '/data/media' '/emmc' process ended with RC=0
I:TWFunc::Remove_MTP_Storage unable to locate partition for 0
I:mount -o bind '/data/media/0' '/emmc' process ended with RC=0
I:Processing '/cache'
I:Processing '/system'
I:Processing '/boot'
I:Processing '/recovery'
I:Processing '/sdcard'
I:Created '/sdcard' folder.
I:Processing '/aboot'
I:Processing '/radio'
I:Processing '/efs1'
I:Processing '/efs2'
I:Processing '/m1'
I:Processing '/sdext2'
I:Created '/sdext2' folder.
I:Backup folder set to '/data/media/0/TWRP/BACKUPS/LGD320fc8fdcd9'
I:Settings storage is '/data/media/0'
Updating partition details...
I:Data backup size is 188MB, free: 553MB.
E:Unable to mount '/sdext2'
I:Actual block device: '/dev/block/mmcblk1p2', current file system: 'ext2'
...done
I:Unmounting main partitions...


Partition Logs:
/data | /dev/block/mmcblk0p34 | Size: 1540MB Used: 188MB Free: 553MB Backup Size: 188MB
Flags: Can_Be_Mounted Can_Be_Wiped Can_Be_Backed_Up Wipe_During_Factory_Reset Wipe_Available_in_GUI IsPresent Has_Data_Media Can_Encrypt_Backup Use_Userdata_Encryption Is_Storage Is_Settings_Storage
Symlink_Path: /data/media/0
Symlink_Mount_Point: /emmc
Primary_Block_Device: /dev/block/mmcblk0p34
Crypto_Key_Location: /dev/block/platform/msm_sdcc.1/by-name/encrypt
Display_Name: Data
Storage_Name: Internal Storage
Backup_Path: /data
Backup_Name: data
Backup_Display_Name: Data
Storage_Path: /data/media/0
Current_File_System: ext4
Fstab_File_System: auto
Backup_Method: files
MTP_Storage_ID: 65537

/cache | /dev/block/mmcblk0p33 | Size: 245MB Used: 8MB Free: 237MB Backup Size: 8MB
Flags: Can_Be_Mounted Can_Be_Wiped Can_Be_Backed_Up Wipe_During_Factory_Reset Wipe_Available_in_GUI IsPresent
Primary_Block_Device: /dev/block/mmcblk0p33
Display_Name: Cache
Storage_Name: Cache
Backup_Path: /cache
Backup_Name: cache
Backup_Display_Name: Cache
Storage_Path: /cache
Current_File_System: ext4
Fstab_File_System: auto
Backup_Method: files

/system | /dev/block/mmcblk0p32 | Size: 1473MB Used: 1221MB Free: 251MB Backup Size: 1221MB
Flags: Can_Be_Mounted Can_Be_Wiped Can_Be_Backed_Up Wipe_Available_in_GUI IsPresent
Primary_Block_Device: /dev/block/mmcblk0p32
Display_Name: System
Storage_Name: System
Backup_Path: /system
Backup_Name: system
Backup_Display_Name: System
Storage_Path: /system
Current_File_System: ext4
Fstab_File_System: auto
Backup_Method: files

/boot | /dev/block/mmcblk0p16 | Size: 22MB
Flags: Can_Be_Backed_Up IsPresent Can_Flash_Img
Primary_Block_Device: /dev/block/mmcblk0p16
Display_Name: Boot
Storage_Name: boot
Backup_Path: /boot
Backup_Name: boot
Backup_Display_Name: Boot
Storage_Path: /boot
Current_File_System: emmc
Fstab_File_System: emmc
Backup_Method: dd

/recovery | /dev/block/mmcblk0p17 | Size: 22MB
Flags: Can_Be_Backed_Up IsPresent Can_Flash_Img
Primary_Block_Device: /dev/block/mmcblk0p17
Display_Name: Recovery
Storage_Name: recovery
Backup_Path: /recovery
Backup_Name: recovery
Backup_Display_Name: Recovery
Storage_Path: /recovery
Current_File_System: emmc
Fstab_File_System: emmc
Backup_Method: dd

/sdcard | /dev/block/mmcblk1p1 | Size: 11165MB Used: 9189MB Free: 1975MB Backup Size: 9189MB
Flags: Can_Be_Mounted Can_Be_Wiped Wipe_Available_in_GUI Removable IsPresent Is_Storage
Primary_Block_Device: /dev/block/mmcblk1p1
Display_Name: sdcard
Storage_Name: sdcard
Backup_Path: /sdcard
Backup_Name: sdcard
Backup_Display_Name: sdcard
Storage_Path: /sdcard
Current_File_System: vfat
Fstab_File_System: auto
Backup_Method: files
MTP_Storage_ID: 65538

/aboot | /dev/block/mmcblk0p6 | Size: 2MB
Flags: Can_Be_Backed_Up IsPresent
Primary_Block_Device: /dev/block/mmcblk0p6
Display_Name: aboot
Storage_Name: aboot
Backup_Path: /aboot
Backup_Name: aboot
Backup_Display_Name: aboot
Storage_Path: /aboot
Current_File_System: emmc
Fstab_File_System: emmc
Backup_Method: dd

/radio | /dev/block/mmcblk0p1 | Size: 64MB
Flags: Can_Be_Backed_Up IsPresent
Primary_Block_Device: /dev/block/mmcblk0p1
Display_Name: radio
Storage_Name: radio
Backup_Path: /radio
Backup_Name: radio
Backup_Display_Name: radio
Storage_Path: /radio
Current_File_System: emmc
Fstab_File_System: emmc
Backup_Method: dd

/efs1 | /dev/block/mmcblk0p11 | Size: 3MB
Flags: Can_Be_Backed_Up Has_SubPartition IsPresent
Primary_Block_Device: /dev/block/mmcblk0p11
Display_Name: EFS
Storage_Name: EFS
Backup_Path: /efs1
Backup_Name: efs1
Backup_Display_Name: EFS
Storage_Path: /efs1
Current_File_System: emmc
Fstab_File_System: emmc
Backup_Method: dd

/efs2 | /dev/block/mmcblk0p12 | Size: 3MB
Flags: Can_Be_Backed_Up Is_SubPartition IsPresent
SubPartition_Of: /efs1
Primary_Block_Device: /dev/block/mmcblk0p12
Display_Name: efs2
Storage_Name: efs2
Backup_Path: /efs2
Backup_Name: efs2
Backup_Display_Name: efs2
Storage_Path: /efs2
Current_File_System: emmc
Fstab_File_System: emmc
Backup_Method: dd

/m1 | /dev/block/mmcblk0p13 | Size: 16MB
Flags: Can_Be_Backed_Up IsPresent
Primary_Block_Device: /dev/block/mmcblk0p13
Display_Name: misc
Storage_Name: misc
Backup_Path: /m1
Backup_Name: m1
Backup_Display_Name: misc
Storage_Path: /m1
Current_File_System: emmc
Fstab_File_System: emmc
Backup_Method: dd

/sdext2 | /dev/block/mmcblk1p2 | Size: 0MB Used: 0MB Free: 0MB Backup Size: 0MB
Flags: Can_Be_Mounted Can_Be_Wiped Can_Be_Backed_Up IsPresent
Primary_Block_Device: /dev/block/mmcblk1p2
Display_Name: sdext2
Storage_Name: sdext2
Backup_Path: /sdext2
Backup_Name: sdext2
Backup_Display_Name: sdext2
Storage_Path: /sdext2
Current_File_System: ext2
Fstab_File_System: auto
Backup_Method: files

I:Loading package: TWRP (/script/ui.xml)
I:Load XML directly
I:Loading package: TWRP (/data/media/0/TWRP/theme/ui.zip)
I:Loading zip theme
I:Loading package: TWRP (/twres/ui.xml)
I:Load XML directly
I:Checking resolution...
I:Loading resources...
open_png /twres/images/twrplogo.png
libpng warning: iCCP: Not recognizing known sRGB profile that has been edited
open_png /twres/images/menu-button.png
open_png /twres/images/file.png
open_png /twres/images/folder.png
open_png /twres/images/slideout.png
open_png /twres/images/indeterminate001.png
open_png /twres/images/indeterminate002.png
open_png /twres/images/indeterminate003.png
open_png /twres/images/indeterminate004.png
open_png /twres/images/indeterminate005.png
open_png /twres/images/indeterminate006.png
open_png /twres/images/indeterminate007.png
open_png /twres/images/progress_empty.png
open_png /twres/images/progress_fill.png
open_png /twres/images/checkbox_empty.png
open_png /twres/images/checkbox_checked.png
open_png /twres/images/radio_empty.png
open_png /twres/images/radio_selected.png
open_png /twres/images/medium-button.png
open_png /twres/images/sort-button.png
open_png /twres/images/minus-button.png
open_png /twres/images/plus-button.png
open_png /twres/images/home-icon.png
open_png /twres/images/back-icon.png
open_png /twres/images/slider.png
open_png /twres/images/slider-used.png
open_png /twres/images/slider-touch.png
open_png /twres/images/unlock.png
open_png /twres/images/keyboard1.png
open_png /twres/images/keyboard2.png
open_png /twres/images/keyboard3.png
open_png /twres/images/keyboard4.png
open_png /twres/images/cursor.png
I:Loading variables...
I:Loading mouse cursor...
I:Loading pages...
I:PageSet::CheckInclude loading filename: '/twres/portrait.xml'
I:Loading included resources...
I:Loading included variables...
I:Loading mouse cursor...
I:Loading included pages...
I:Loading page main
I:Loading page main2
I:Loading page install
I:Loading page flash_confirm
I:Loading page flash_zip
I:Loading page flash_done
I:Loading page install_image
I:Loading page flashimage_confirm
I:Loading page clear_vars
I:Loading page confirm_action
I:Loading page action_page
I:Loading page singleaction_page
I:Loading page action_complete
I:Loading page filecheck
I:Loading page rebootcheck
I:Loading page wipe
I:Loading page advancedwipe
I:Loading page formatdata
I:Loading page formatdata_confirm
I:Loading page checkpartitionlist
I:Loading page partitionoptions
I:Loading page refreshfilesystem
I:Loading page selectfilesystem
I:Loading page backup
I:Loading page backupname1
I:Loading page backupname2
I:Loading page backupencryption
I:Loading page backupencryption2
I:Loading page checkbackuppassword
I:Loading page backup_run
I:Loading page restore
I:Unable to open '/data/media/0/TWRP/BACKUPS/LGD320fc8fdcd9'
I:Loading page restore_read
I:Loading page restore_decrypt
I:Loading page try_restore_decrypt
I:Loading page restore_select
I:Loading page renamebackup
I:Loading page restore_run
I:Loading page selectstorage
I:Loading page mount
I:Loading page usb_mount
I:Loading page usb_umount
I:Loading page system_readonly_check
I:Loading page reboot
I:Loading page settings
I:Loading page timezone
I:Loading page screen
I:Loading page Vibrate
I:Loading page advanced
I:Loading page partsdcard
I:Loading page htcdumlock
I:Loading page lock
I:Loading page filemanagerlist
I:Loading page filemanageroptions
I:Loading page choosedestinationfolder
I:Loading page filemanagerrenamefile
I:Loading page filemanagerrenamefolder
I:Loading page filemanagerchmod
I:Loading page filemanagerconfirm
I:Loading page filemanager

strangely:
E:Unable to mount '/sdext2'
I:Actual block device: '/dev/block/mmcblk1p2', current file system: 'ext2'
...done

Can you get dmesg in recovery?

crutchcorn said:
TWRP Recovery
This recovery is for the LG L70. It has been tested and works 100%.

DISCLAIMER: I am not responsible for anything that can happen to your device when using this. Your phone = Your responsibility. Your bootloader must be unlocked to use this.

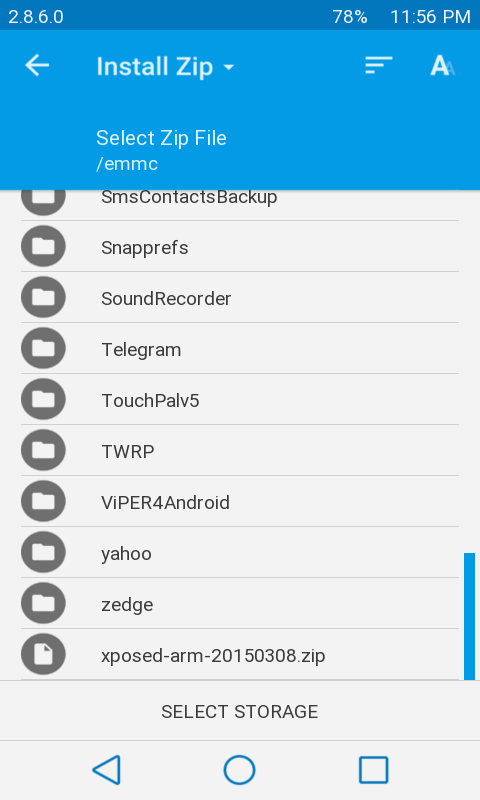

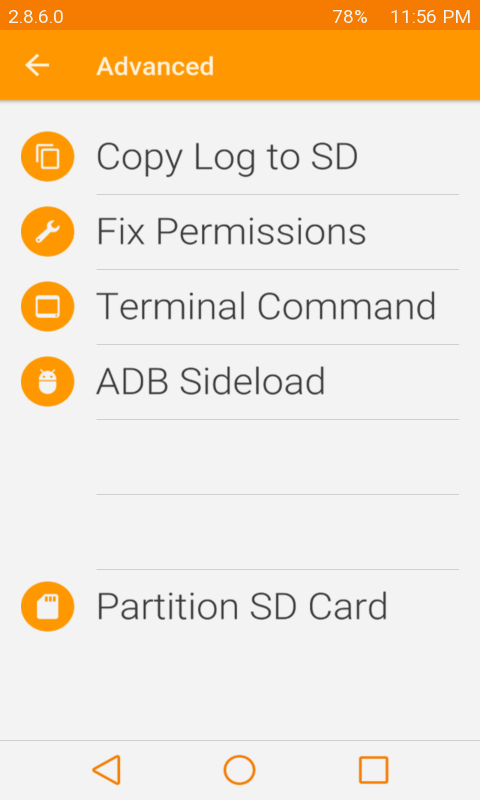

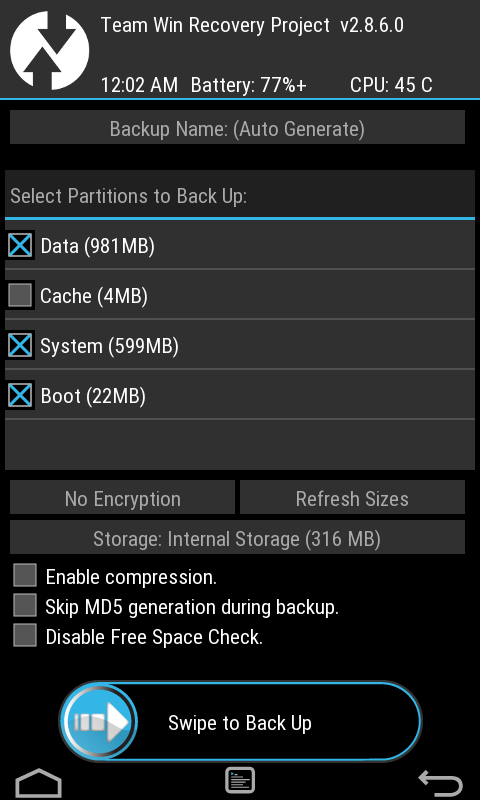

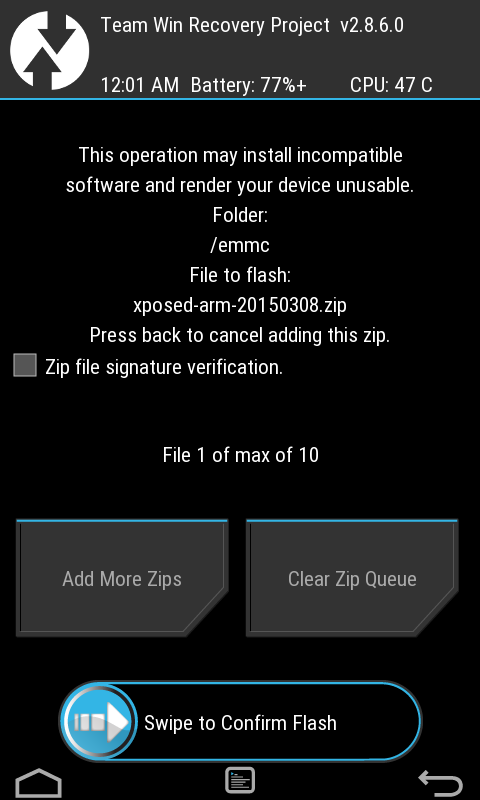

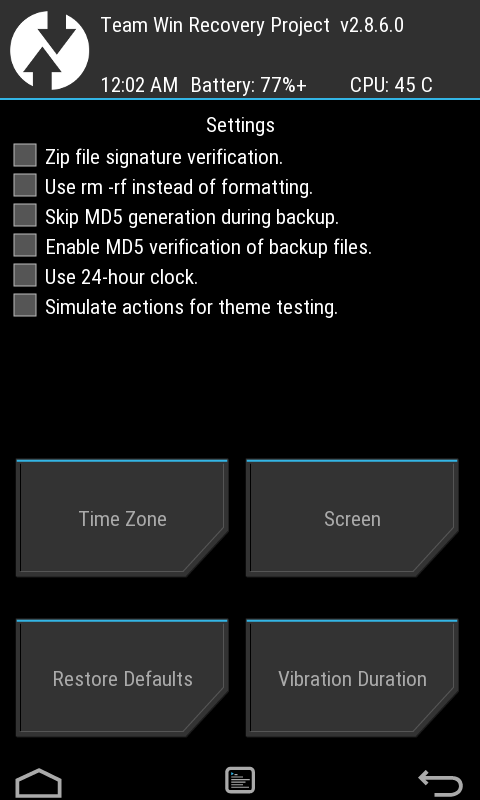

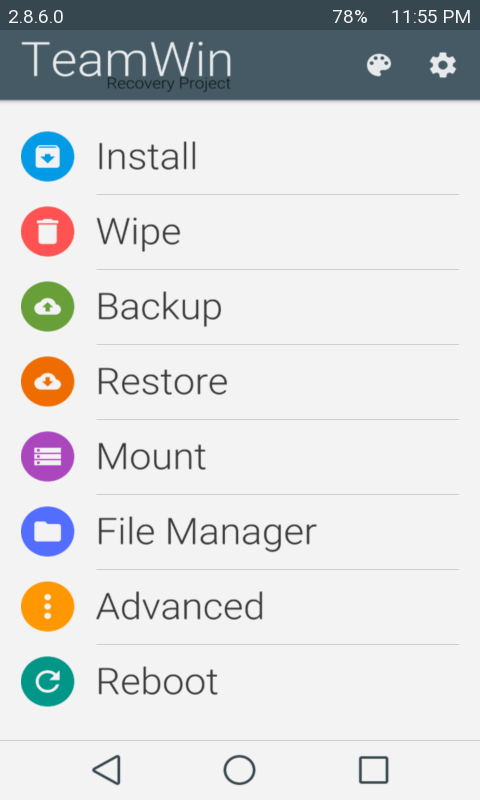

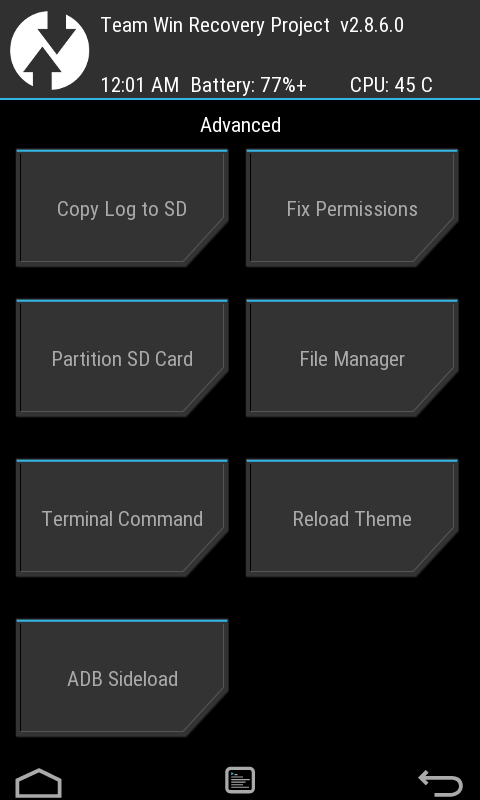

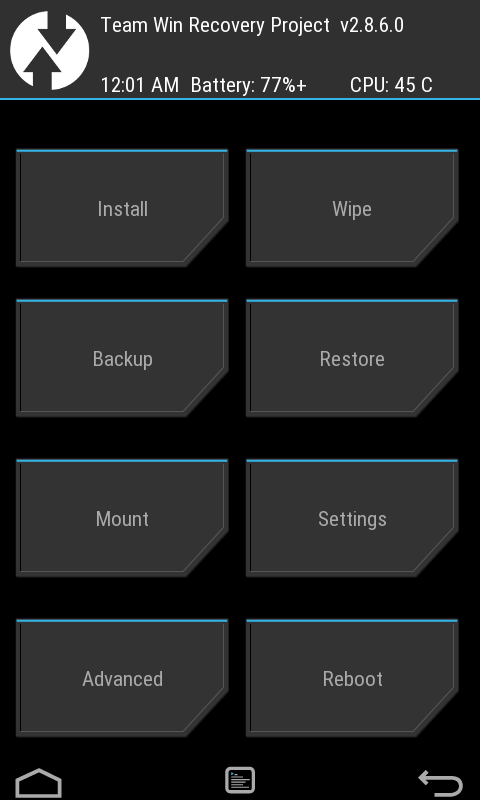

View attachment 84721 View attachment 84722 View attachment 84723 View attachment 84724 View attachment 84725

The Goods


CHANGELOG:
06/24/2015
Added support for backup partitions: EFS (IMEI), misc (wifi and bt mac's), aboot, radio.

04/03/2015
Fixed for SeLinux (enabled in CM12.1 and planned for CM12): backup and restore, gapps install.
https://yadi.sk/d/N7DCXDbMfjo7y

03/28/2015
Initial make.
https://yadi.sk/d/7VEmlse8fanYb

Installation

FASTBOOT USERS:

Download the recovery.img to your computer and open up terminal or command prompt and cd to the directory where the recovery.img is.

Example:
Windows
Code:
cd Downloads
Linux
Code:
cd ~/Downloads
Now that you are in the recovery.img's directory, boot into fastboot mode by powering off the device, from power off, plug in your usb, power on the device, as soon as it starts to boot, release the power button and hold volume up until in fastboot mode.

Now in terminal or command prompt, type:
Code:
fastboot flash recovery recovery.img
Reboot
Code:
fastboot reboot
Once booted, go download this awesome app to make rebooting to recovery easy, HERE

FOR THOSE WITH A RESTORED LAF PARTITION:

Place the recovery.img in the root of your internal sd card.

Open up command prompt or terminal and type:
Code:
adb shell
Code:
su
Now it is time to overwrite your stock recovery with cwm, type:
Code:
dd if=/sdcard/recovery.img of=/dev/block/platform/msm_sdcc.1/by-name/recovery
That's it, download this awesome app to reboot to recovery HERE

To boot to recovery power off device, power on the device, and wait until it gets to the dim LG logo and try to interrupt the long vibration by pressing volume down a few times, if done correctly, your phone will stop the first boot and start another one that boots you to recovery. Timing is key so it might take a few tries

MS323 USERS ONLY:

No need to replace our laf.img!!! Thanks to @DevMyAndroid (who shared this with me), he noticed that if you press power + vol down until you reach the lg logo, release, and then hold same buttons again it will bring up a factory reset screen. If you select "yes", it will take you straight into twrp. With NO data loss.


Theming

One of the wonderful features of TWRP is that you can totally theme it! There are links all over. My personal favorite and the one that I use is a material theme! Here's a look of TWRP with a theme:
View attachment 84726 View attachment 84727 View attachment 84728 View attachment 84729
You can even check out TWRP Theme Manager an app on Google Play Store. :)


Before you go and try to thank me.
ALL CREDIT GOES TO THE MAGICAL @vm03

vm03 totally told me to create and maintain a thread for his TWRP and I was glad to oblige. :) Thank you vm.
Click to expand...
Hi, error in my d320n: " Boot certificate verify ". How to slove?? Help me, Sorry for the bad english, but i'm not english

Sloved http://androidforums.com/threads/dump-all-variants-aboot-files-and-how-to-flash.918174/

Last edited:
bro, i have lg l70 d325 , firmware 4.4.2, after restart , often hang in LG logo.. sometimes can pass in, but mostly hang in logo..
i have install firmware online using lg support mobile tool, after success, can pass in the logo, but after 2 week, back to hang in logo after restart..
so i want install to firmware 5.1.
i see in the many forum, must using twrp.. but before that, must root the LG..
this root is difficult, i didn't not understand in using adb.exe.. do u have other way to make the root?
thx..

Somthing went wrong here for me.
I unlocked the bootloader using this guide and when I enter "fastboot oem device-info" shows:
Code:
(bootloader)    Device tampered: false
(bootloader)    Device unlocked: true
(bootloader)    Charger screen enabled: false
OKAY [  0.010s]
finished. total time: 0.015s
even flashing the twrp-2.8.7.0-20150821-w5.img gives me no error and goes as planned.but when i try to ener twrp i'm stoped by this message:
Code:
secure booting error!!
cause: boot certification verify
EDIT:I even tried flashing patched aboot.bin provided here, but still no luck. Suppose that's because the aboot.bin is for 10c version, i'm on 10d version.

Last edited:
i flashed twrp with flashify, it worked, adb reboot recovery, it takes me to twrp, but it doesnt let me flash cm12 or 12.1, it says it failed then redirects me to boot back to whatever rom i have installed. the problem is i need twrp for the home button and all buttons to work in their allocated functions, i can use cwm for cm11 and it works, but if i use cwm for cm12, the back button is back, the options/3 lines button is home, and the physical home button does absolutely nothing

I flashed TWRP on my LG L70 D320 with ADB and fastboot.
When I use adb reboot recovery, it enters a purple screen, and it enters the ram dump mode, I think.
I want to install the CM13, but I can't get the TWRP on my cellphone...what should I do?

You need to flash the correct aboot.bin for your handset: androidforums.com/threads/dump-all-variants-aboot-files-and-how-to-flash.918174/#post-6964977

You must log in or register to reply here.
Back
Top Bottom
